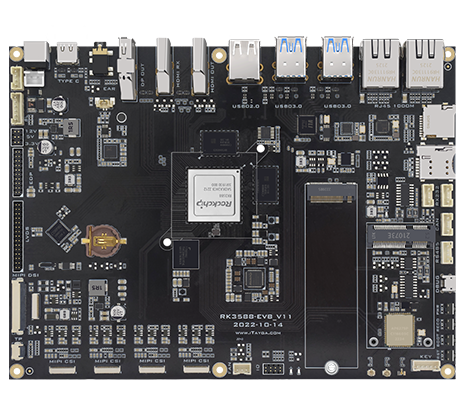

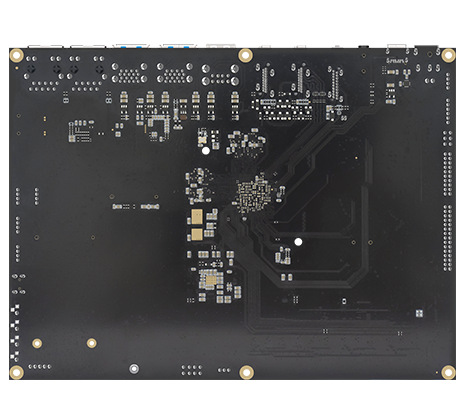

Kiwi Pi-P2 Embedded Development Board
Rockchip RK3588 Quad-Core A76+A55 ARM Mali-G610 MC4，6.0 TOPs NPU
Rockchip RK3588 (8nm LP Process)
Kiwi Pi-P2 is powered by Rockchip RK3588 8-core 64-bit processor with 4 Cortex-A76 (2.2GHz), 4 Cortex-A55 (1.8GHz) and independent NEON coprocessor.
6 TOPS Powerful Computing Power
Equipped with a powerful NPU delivering 6TOPS of computing power, it supports INT4/INT8/INT16 mixed operation and framework switching of TensorFlow / MXNet / PyTorch / Caffe. Its exceptional compatibility is able to meet the edge computing needs of terminal devices.
Super-Large 32GB RAM
With a maximum configuration of 32GB, this device exceeds the previous RAM limit, delivering faster response times. It is able to meet the product requirements for large RAM and high storage capacity.
8K Video Encoding And Decoding
Supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264encoding. It also supports encoding and decoding simultaneously, enabling up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding. These deliver a stunning 8K HD display and delicate picture quality.
Dual Gigabit Ethernet ports
Kiwi Pi-P2 comes equipped with multiple high-speed Ethernet ports, including two Gigabit Ethernet.Enabling faster network data transfer, seamless multimedia streaming, and enhanced real-time communication. It also supports WiFi 6 (IEEE802.11 a/b/g/n/ac/ax up to 600.4Mbps), BT5.4, 2.4Ghz and 5Ghz band channels, 2T2R
Industrial-Grade Product Standards, No Fear Of Harsh Working Environments
Through rigorous testing and production, we ensure the reliability, safety and stability of the product in harsh environments. With built-in temperature control strategy, it can run stably and uninterruptedly 24 hours a day, 7 days a week, whether it is extremely cold -20°C or high temperature 85°C, meeting the needs of industrial applications and suitable for various harsh working environments.

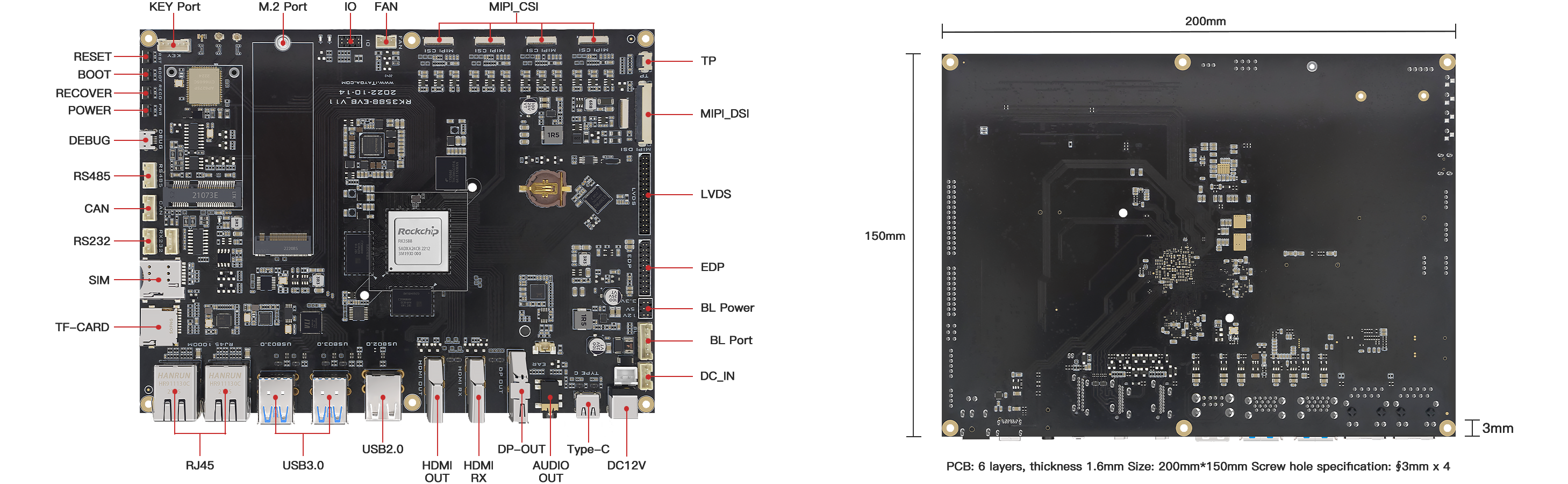

Rich peripheral interfaces
It boasts an extensive array of peripheral interfaces on its base board, including Four USB 3.0 ports, Two USB 2.0 interface, dual Gigabit Ethernet interfaces, CAN interfaces, and an integrated WiFi/Bluetooth module. Furthermore, it incorporates a Micro SD card slot and an M.2 NVMe SSD-compatible PCIe slot etc.
Abundant resources
We provide SDKs, tutorials, technical documents, and development tools to streamline and simplify the development process.
Support Multiple Operating Systems
Linux 5.10 (option:Linux6.10), Android12, Debian11, Ubuntu22.04
Extensive Application Scenarios
Kiwi Pi-P2 can be used in ARM PCs, mini PCs, NAS, edge computing, cloud servers, smart NVRs, and industrial control systems.
-
AI Robot
-

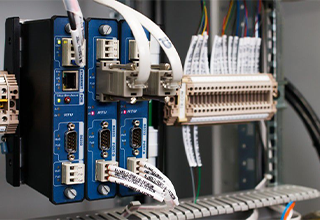

Control Systems
-
Industrial Gauge
-
Edge Computing
Basic parameters
| Specifications | CPU | Rockchip RK3588, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
| GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2 High performance 2D image acceleration |
|
| NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications |
|
| VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 |
|
| DDR | LPDDR4X 8GB (option: 4/16/32GB) 2133MHz, 64-bit |
|
| Storage | eMMC 64GB (Option:128GB/256GB/512GB) MicroSD (TF) Card Slot |
|
| USB | 1*Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 4*USB 3.0 Host 2*USB 2.0 Host |
|
| Serial Ports | 2xRS-232 1xRS-485 |
|
| Video Output | HDMl2.1(Maximum resolution 8K@60fps) Type-C DP1.4(maximum resolution 8K@30fps) Display Port DP 1.4 Mipi-DSl 4-Lane(maximum resolution 2560*1600@60fps) |
|
| Video Iutput | 4* MIP|-CS| 4Lane HDMI RX 2.0 |
|
| HDMI | 1*HDMI TX 2.1, 1*HDMI RX 2.0 |
|
| Wireless | WiFi 6 (IEEE802.11 a/b/g/n/ac/ax up to 600.4Mbps) BT5.4 2.4Ghz and 5Ghz band channels, 2T2R |
|
| Ethernet | 2x1000Mbps RJ45 |
|
| Audio | 3.5mm headphone jack with stereo audio output and mic input On board mic input |
|
| Power Supply | DC in 12V/2A |
|
| Supported OS | Linux 5.10 (option:Linux6.10) Android12, Debian11, Ubuntu22.04 |
