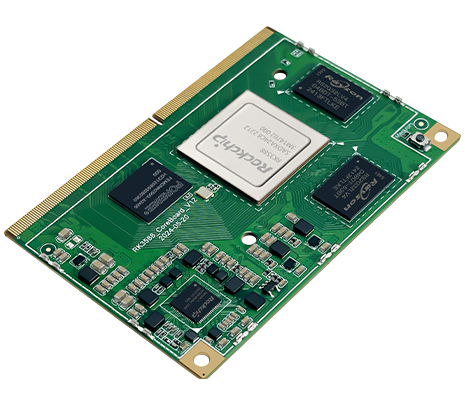

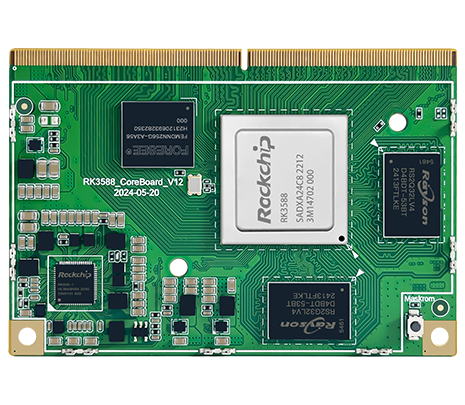

RK3588 SOM Core Board
Linux OS AI ARM RK3588 Core Board
High-Performance AI System-on-Module
SOM RK3588 is a powerful system on module powered by the Rockchip RK3588 chip, featuring a 6Tops NPU and a quad-core Mali-G610 MP4 GPU. It comes with a customized carrier board , offering expandable interfaces for diverse displays and industry applications. Compatible with various operating systems, this module suitable for a range of embedded applications.

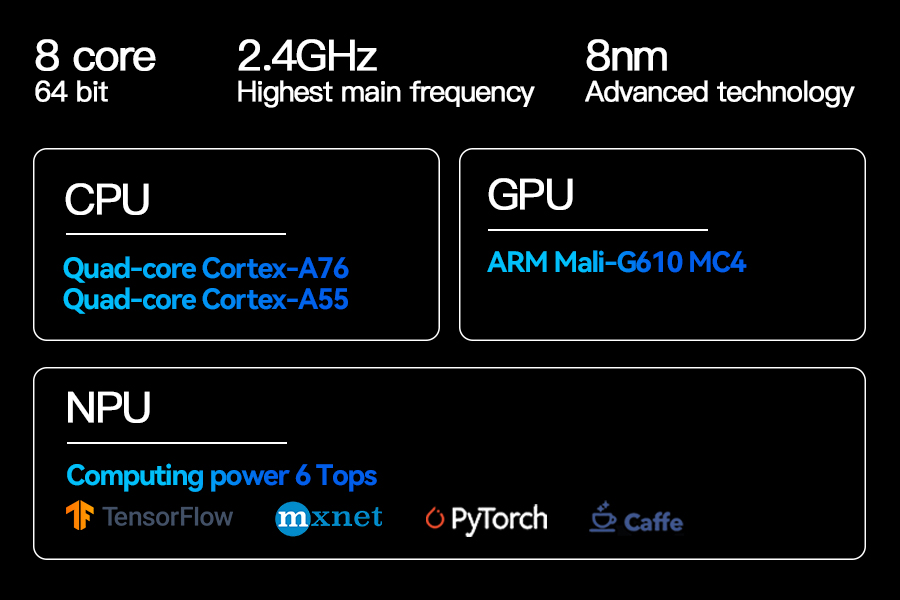

Next-Gen Octa-Core Processor
SOM core board boasts the RK3588 octa-core 64-bit processor, an integrated ARM Mali-G610 MP4 quad-core GPU, and a built-in 6TOPs AI NPU. Explore new performance for diverse AI scenarios.

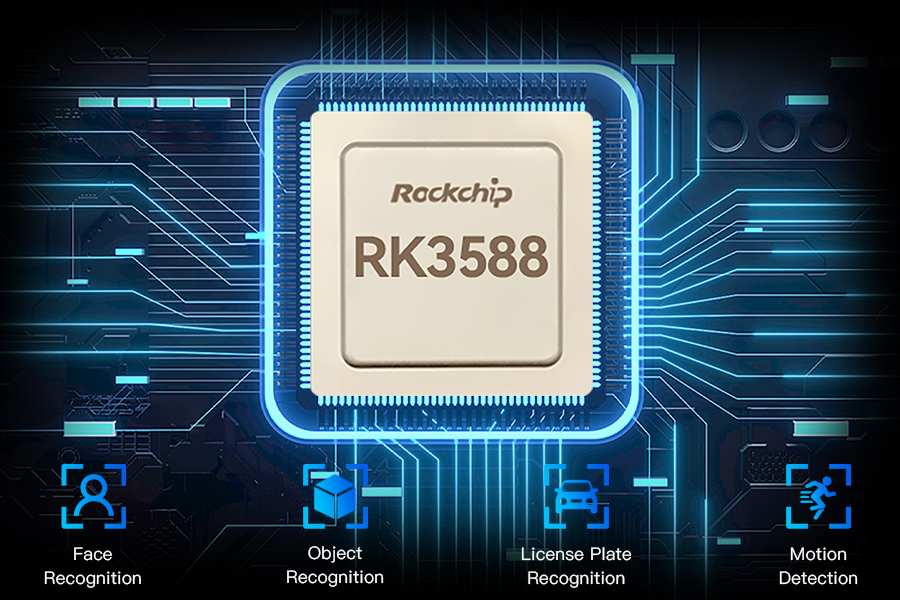

High-Performance RK3588 CPU
The core board has advanced RK3588 octa-core 64-bit flagship processor. Crafted with 8nm technology, it integrates an ARM Mali-G610 MP4 quad-core GPU and a 6TOPs AI NPU. Its architecture ensures high performance and energy efficiency, making it suitable for intensive applications.
8K Video Performance
Unlock the potential of 8K video output and 4K video input, facilitating up to four-screen displays. Perfect for immersive, high-definition, multi-screen interactive scenarios.

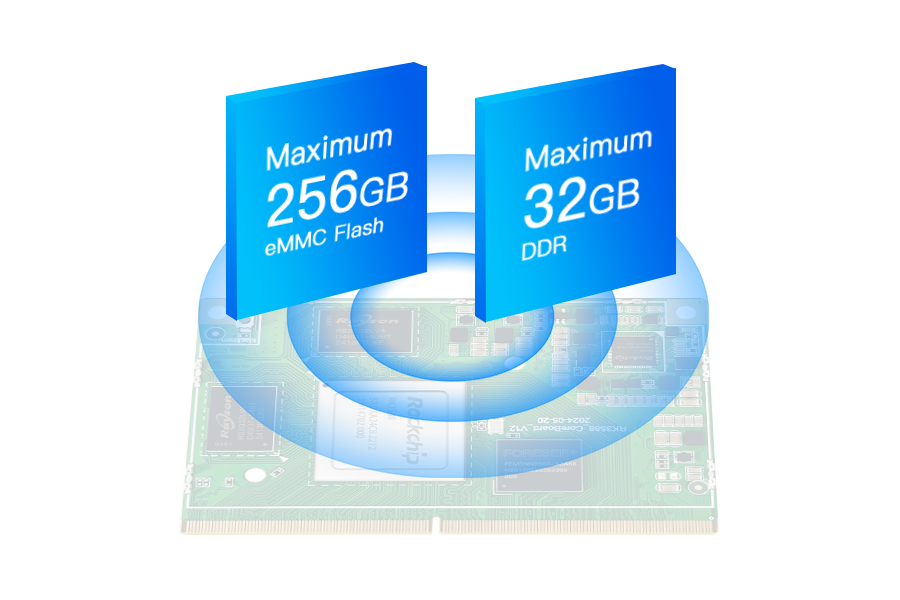

Large Capacity of RAM and eMMC
It can be equipped with up to 32GB of ultra-large operating memory, which exceeds the previous memory capacity limit and has a faster response speed, and can meet the application needs of products with high memory requirements and large storage capacity.
Rich Expansion Interface
Utilizes a standard SODIMM interface with 314 pins, supports a variety of expansion interfaces including HD-MI, MIPI-DSI, DP, MIPI-CSI, PCIe3.0, PCIe2.0/SATA3, SDIO, GMAC, USB3.0, USB2.0, I2C, I2S, UART, GPIO, and more for versatile industry applications.

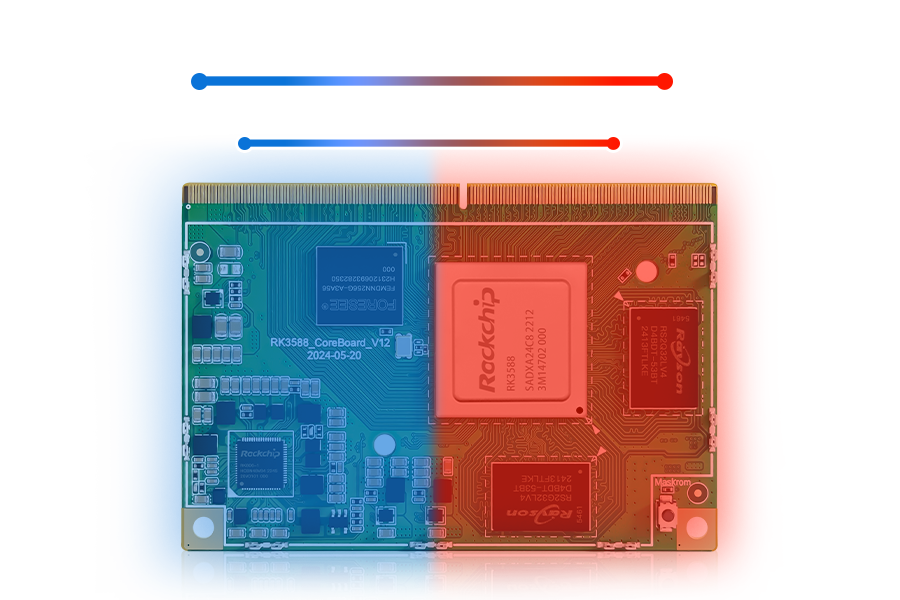

Industrial-grade for Harsh Environments
The industrial-grade processors and components adhere to strict standards, ensuring reliability, safety, and stability in harsh environments. They operate 24/7 in temperatures from -40°C to 85°C, making them ideal for demanding industrial applications.

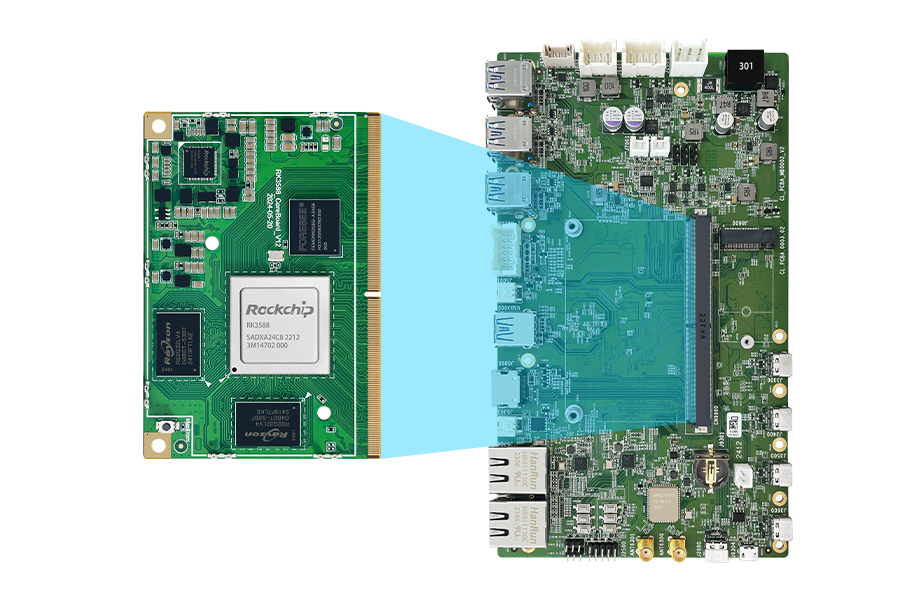

High-performance ITX Industry Motherboard
The core board uses the standard MXM3.0-314P interface and is compact in size. When combined with the baseboard, it can form a complete high-performance ITX industry motherboard with richer expansion interfaces, which can be directly applied to various smart products to accelerate product implementation.

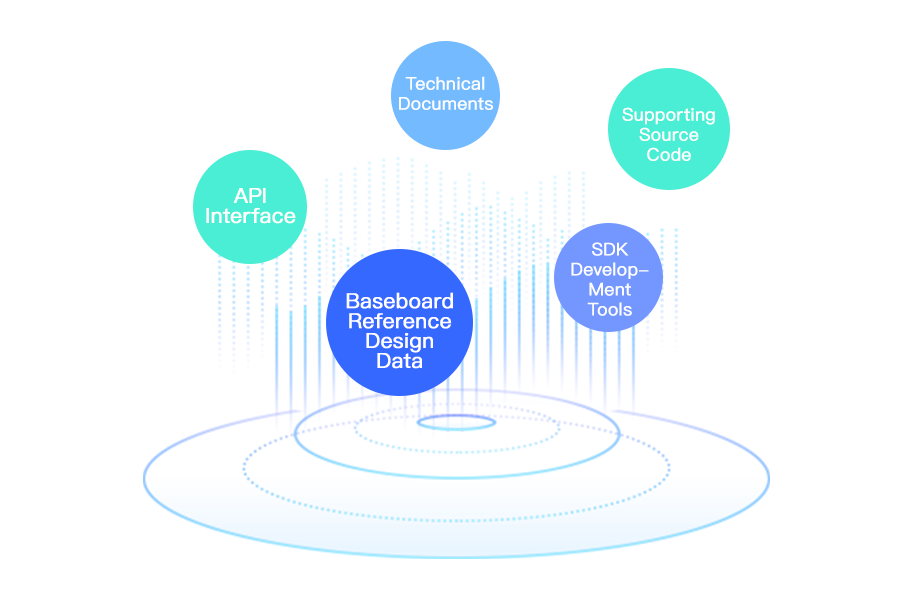

Strong Technical Support
Provide supporting source code, tutorials, technical information and development tools to make development easier and more convenient.
Support Multiple Operating Systems
Support Android 12.0, Ubuntu desktop and server versions, Debian11, and Buildroot; supports RTLinux kernel with excellent real-time performance; Support domestic operating systems such as Kylin and Tongxin; and supports UEFI boot; Provides a safe and stable system environment for product development
Extensive Application Scenarios
The RK3588 SOM core board applies in Industrial Automation， Smart Transportation，Smart Retail Solutions，Healthcare and Medical Solutions，Smart Education Solutions，AI and Machine Learning，Smart Home and Consumer Electronics，Multimedia and Entertainment，Networking and Communication，Agriculture and Environmental Monitoring and more.
-
AI Robot
-
IoT Gateway
-
Industrial Gauge
-
Edge Computing
Basic parameters
| System | SoC | Rockchip RK3588 (8nm LP process) |
| CPU | 8-core 64-bit processor Big.Little Architecture: 4x Cortex-A76 and 4x Cortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency |
|
| GPU | Arm Mali-G610 MP4 Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 3D graphics engine and 2D graphics engine |
|
| NPU | NPU computing power up to 6TOPS, support INT4/INT8/INT16 mixed computing Network model conversion based on TensorFlow/MXNet/Pytorch/Caffe and other frameworks |
|
| ISP | Integrated 48MP ISP with HDR&3DNR |
|
| VPU | Video decoding. 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding. 8K@30fps encoding, H.265 / H.264 support Up to 32 channels 1080P@30fps decoding and 16 channels 1080P@30fps encoding |
|
| RAM | 4GB/8GB/16GB/32GB |
|
| Storage | 16GB/32GB/64GB/128GB/256GB eMMC |
|
| Display | Video output: 2×HDMI2.1（8K@60fps or 4K@120fps，Combo with eDP (4K@60fps) ） 2×MIPI-DSI（4K@60fps） 2×DP1.4（8K@30fps，Combo with USB 3.0） 1×BT.1120（1080P@60fps） Video input: 1 × HDMI-IN ( 4K@60fps) , supports HDCP 2.3 1 × MIPI CSI (4 lanes) or 2×MIPI CSI (2 lanes) 2 × MIPI DC ( 4-lane DPHY v2.0 or 3-lane CPHY V1.1) 1 × DVP camera (up to 150MHz input data) * Supports multi-channel 8K video output and 4K video input, up to seven-screen output with different displays |
|
| Audio | 2 × 8-channel I2S 2 × 2-channel I2S 2 × SPDIF 2 × 8-channel PDM (supports multi-MIC array) 1 × Dual-channel digital audio codec (16-bit DAC) 1 × VAD |
|
| PCIe | PCIe3.0 (2×2lanes,1×4lanes,4×1lanes) 、3×PCIE2.0(1 lanes) |
|
| SATA | 3 × SATA3.0 |
|
| USB | 3 × USB3.0、4 × USB2.0 Host 2 × USB2.0 OTG |
|
| Network | Integrated with PCIe3.0/GMAC/SDIO3.0/USB3.0, it can be extended to multi-channel Gigabit Ethernet, WiFi 6/Bluetooth, 5G/4G LTE |
|
| Expansion Port | 9 × I2C、10 × UART、5 × SPI、7 × ADC 、16 × PWM 、1 × SDMMC、GPIO |
|
| Power Source | Support Type-C power supply Wide voltage input，Support DC 5~20V input Support QC2.0/PD3.1/BC1.2 and The third party charging protocols such as Huawei FCP Default voltage 12V |
|
| Supported OS | Android: Android 12.0 Linux: Ubuntu Desktop, Ubuntu Server, Debian11, Buildroot, RTLinux, Kylin Linux, UOS * Supports UEFI Boot |
|
| Mechanical | Dimension | 3.23" x 2.09" / 82 mm(L) x 53 mm(H) |
| Interface Type | MXM3.0 ( 314 PIN, 0.5mm pitch) |
|
| PCB | 10-layer design, immersion gold technology |
|
| Heat Dissipation | Heat sink installation hole pitch: 45mm |
|
| Power Consumption | Idle: ≈1.35W (12V/110mA) Typical: ≈4.8W (12V/400mA) Max: ≈20W (12V/1700mA) |
|
| Environment | Operating Temperature: -4°F ~ 140°F (-20℃～60℃), Storage Temperature: -4°F ~ 158°F (-20℃～70℃), Storage Humidity: 10% ~ 90% |
