RK3588 EVB and RK3588S EVB
May 17,2024
The two major products launched are RK3588 EVB and RK3588S EVB. RK3588 EVB is mainly aimed at AIoT industry application products such as ARM PC, NVR, server, IPC, large-screen display equipment, etc.; RK3588S EVB is aimed at high-end tablets, AR/VR, personal mobile Internet devices and other consumer electronic products.

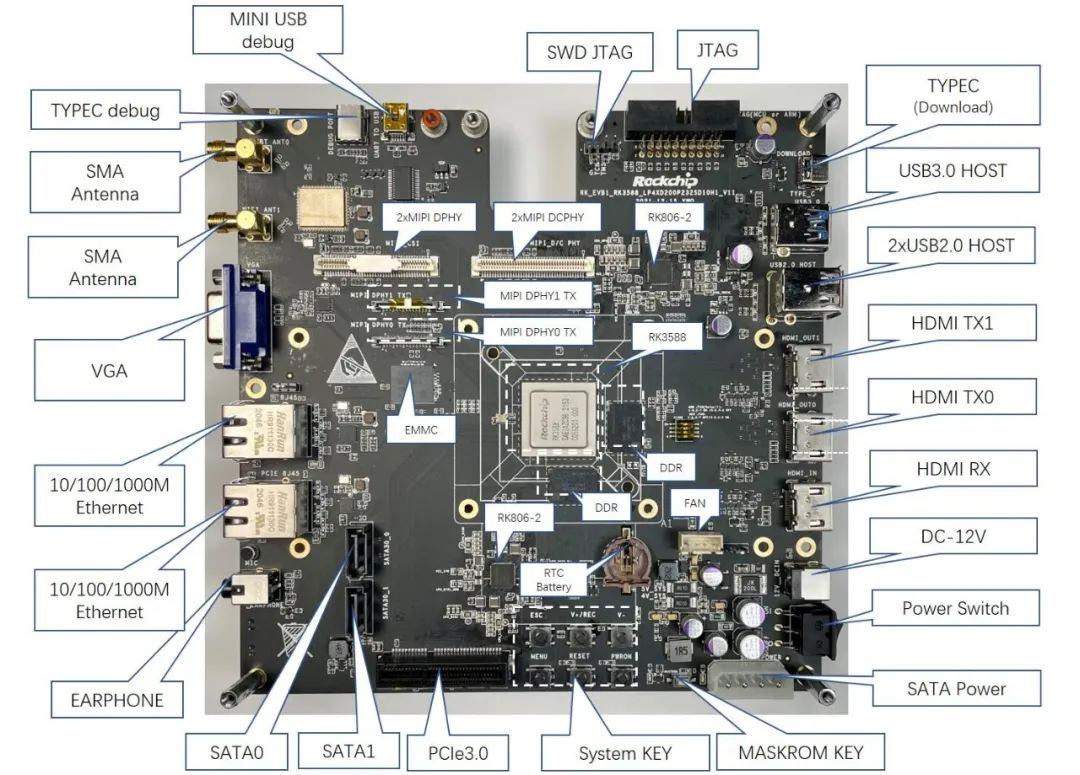

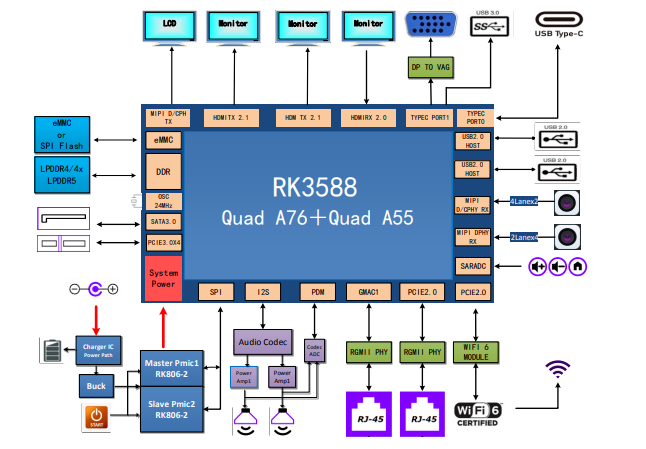

1. RK3588 EVB：High performance, multiple interfacesRK3588 EVB adopts RK3588 chip and RK806-2 dual PMIC power supply solution; storage adopts LPDDR4X and eMMC; there are 2xHDMI TX, 1xHDMI RX, MIPI TX, VGA, SATA, PCIe30x4, TYPEC, 2xRJ45 and other peripheral interfaces, and the size is 18cmX18cm.
RK3588 EVB is equipped with rich peripheral interfaces, which is suitable for AIoT terminal devices in various industries.2. RK3588S EVB：Thinner and lighter Consumer grade

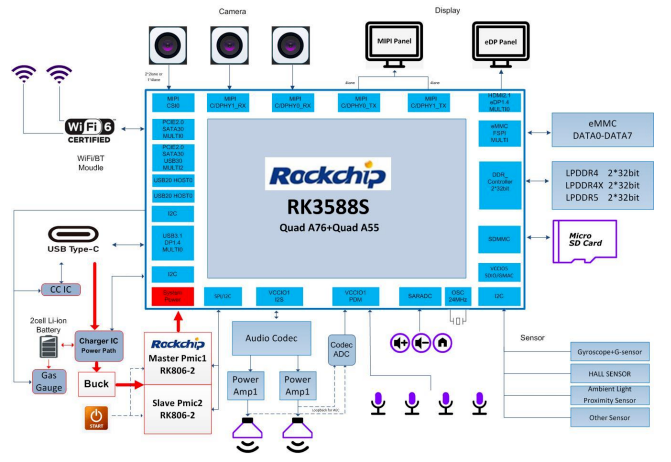

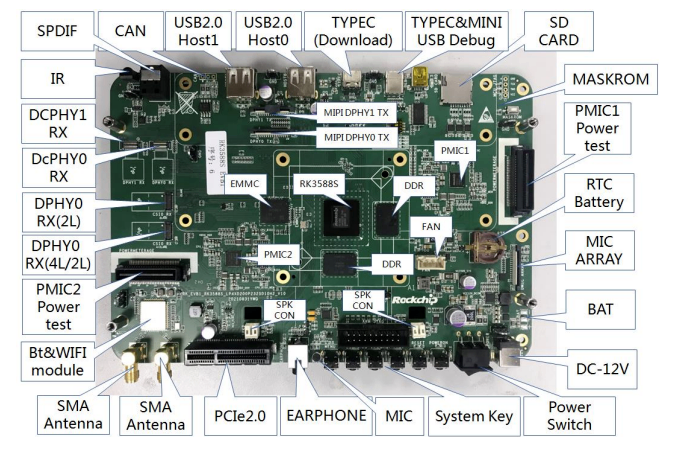

RK3588S EVB adopts RK3588S chip, and its performance is basically the same as RK3588. In view of the performance requirements and product structure design requirements of consumer applications, RK3588S EVB has been optimized in terms of interface and development board size. The size is 20cmX14cm, which is suitable for high-end tablets, AR/VR, personal mobile Internet devices and other products.
RK3588S is also equipped with RK806-2 dual PMIC power supply solution; storage uses LPDDR4X, eMMC, SD3.0; it has eDP TX, MIPI D/C PHY TX, MIPI D/C PHY RX, MIPI DPHY RX, PCIe20, TYPEC, audio output, array MIC input and other peripheral interfaces.
