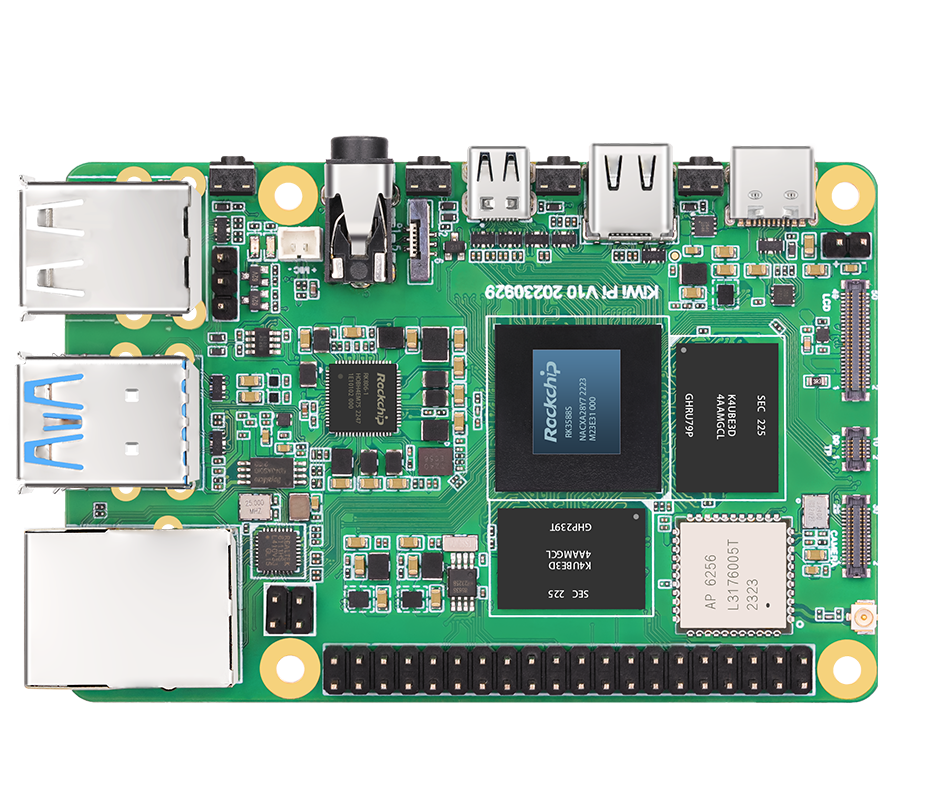

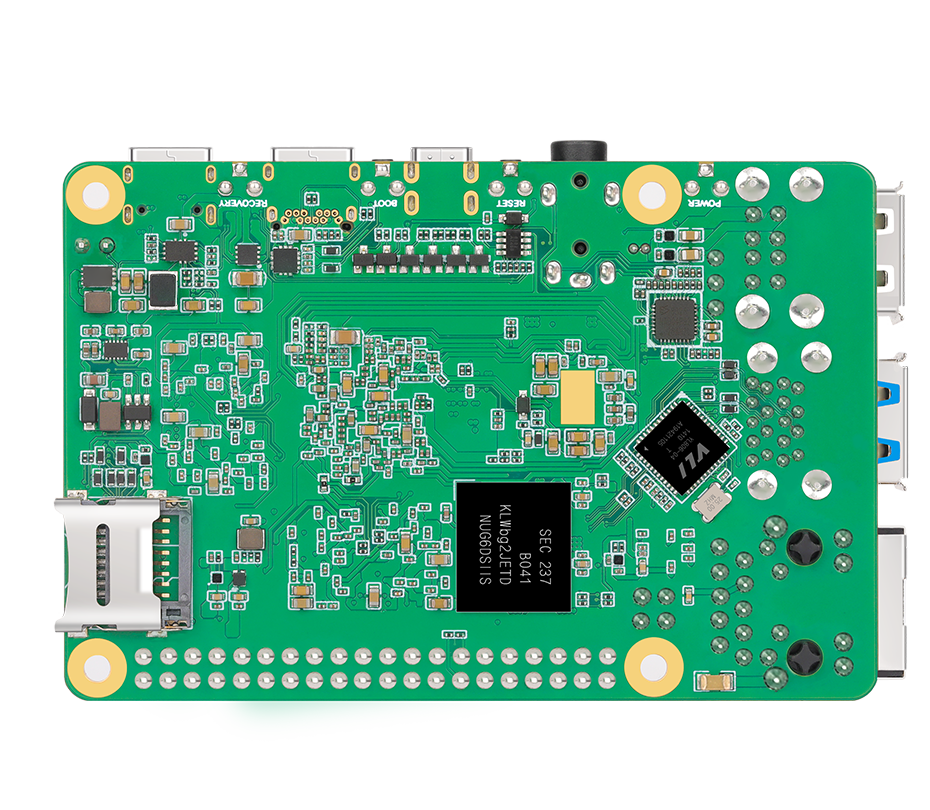

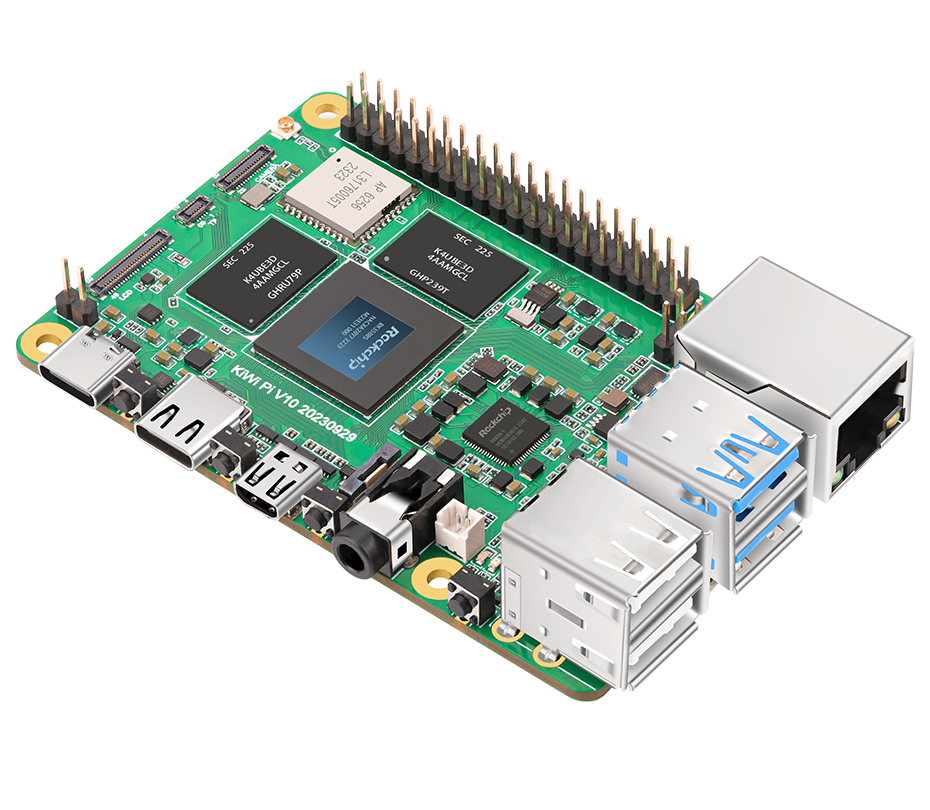

Single Board Computer
Powered with RK3588S CPU and RAM & ROM onboard.

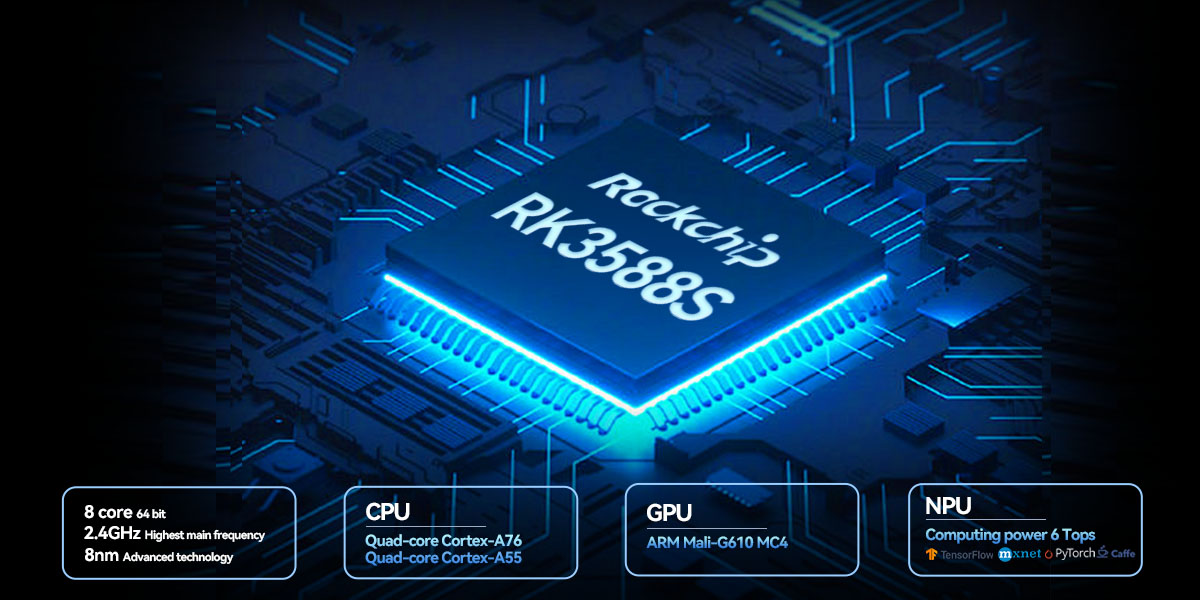

High-Performance RK3588S CPU
The alternative to Raspberry pi has advanced RK3588 octa-core 64-bit flagship processor. Crafted with 8nm technology, it integrates an ARM Mali-G610 MP4 quad-core GPU and a 6TOPs AI NPU. Its architecture ensures high performance and energy efficiency, making it suitable for intensive applications.

8K Video Performance
Experience ultra-high-definition visuals with 8K video performance. This capability ensures stunning clarity and detail, making it perfect for multimedia applications, digital signage, and high-end video projects.

Powerful NPU (Neural Processing Unit)
Equipped with a 6 TOPS (Tera Operations Per Second) NPU, this single board computer is optimized for machine learning and AI applications. The NPU accelerates neural network processing, enhancing the performance of AI tasks such as image recognition, natural language processing, and more.

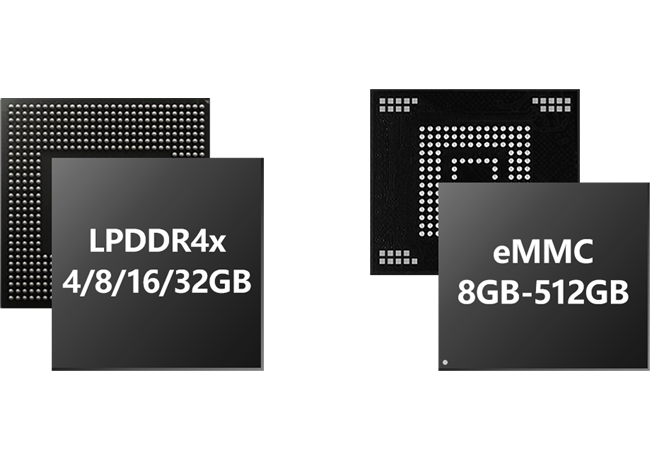

Ample RAM and ROM
With large 4 to 32GB LPDDR4 RAM and 8 to 512GB eMMC on board capacities, this device ensures smooth multitasking and ample storage for applications and data. The expanded memory supports complex computations and large datasets, improving overall system performance.

Machine Learning Capabilities
The integration of powerful processing and NPU enables advanced machine learning capabilities. This makes the alternative to Raspberry Pi ideal for developing and deploying AI models in various fields such as robotics, automation, and intelligent systems.

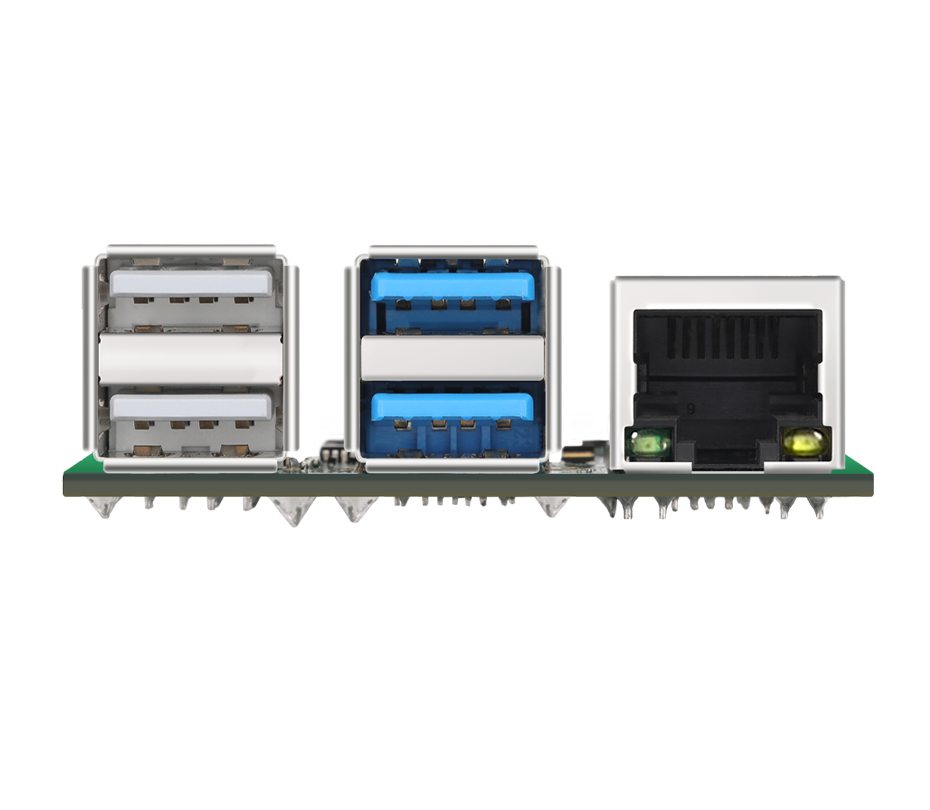

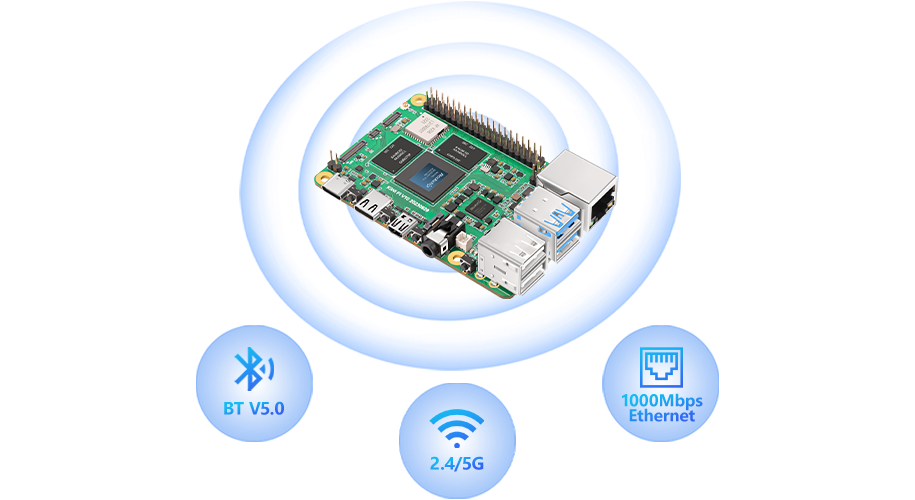

Strong Network Communication Capability
The single board computer gives users access to a variety of high-speed, low-latency network communication channels for dependable, continuous network connectivity.

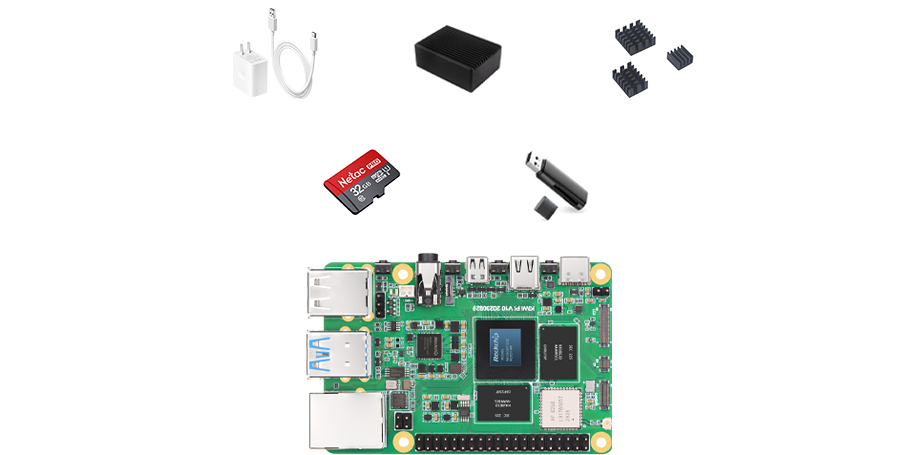

Accessories Available
A variety of accessories are available to enhance functionality and expand capabilities, including cases, power supplies, heat sink and expansion boards.

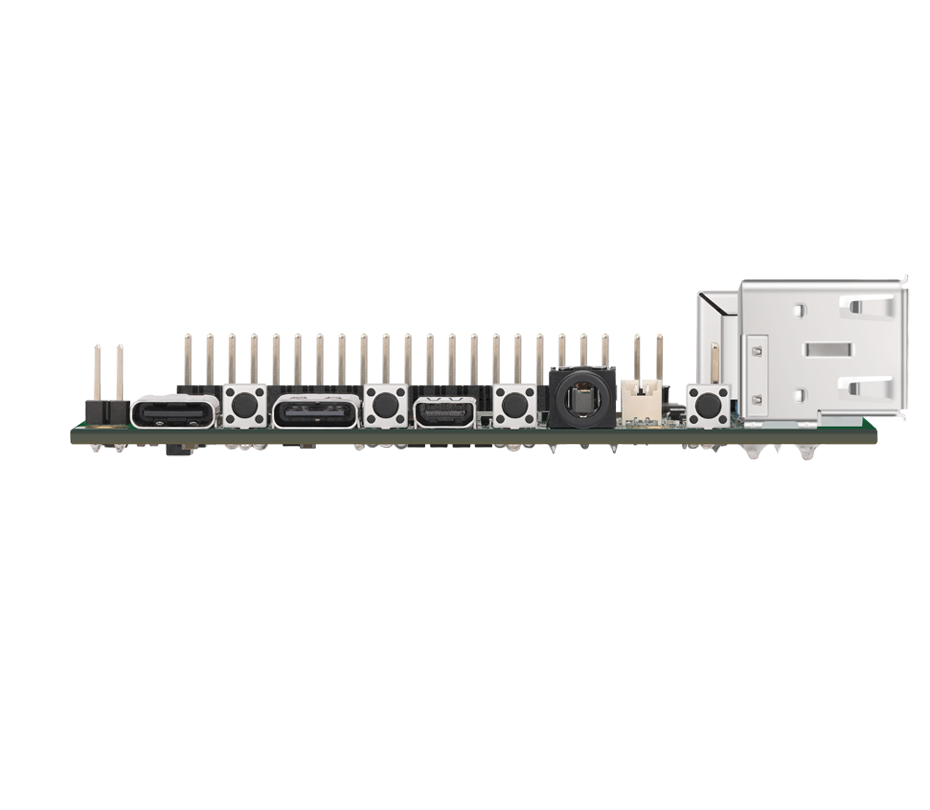

Abundant Peripheral Expansion Interface
The RK3588S SBC can support 4K 120fps video encoding and 8K 60fps video decoding thanks to its array of video input and output interfaces, which include MIPI-CSI, HD-MI-D, and MIPI-DSI. It can be configured as RS232, GPIO, SPI, I2C, PWM, and other industrial communication interfaces because it is completely compatible with the Raspberry Pi interface definition. Because of these characteristics, it is a perfect solution for scenarios involving programming instruction and industrial control interface extension requirements.

Various Technical Data Sheets
We offer comprehensive technical data sheets that include reference design data, technical documents, technical source code, API interface, and SDK development tools. This helps customers swiftly and easily create customized products that are independent and under control, while also streamlining secondary development.

Versatile Operating Systems
Supports various operating systems: including Linux 5.10 (option:Linux6.10) Android12、Ubuntu22.04、Debian11.
A Variety of Application Scenarios
This embedded SBC can be used in edge computing, artificial intelligence, education, VR/AR, blockchain, smart security, smart industrial control, smart home server, etc.
-
Education
-
IoT
-
Server Application
-
Embedded System
Basic parameters
Specifications | CPU | Rockchip RK3588S, 8nm process Quad-core ARM 64-bit 4*Cortex-A76@2.2GHz + 4*Cortex-A55@1.8GHz |
GPU | ARM Mali-G610 MC4 OpenGL ES 1.1/2.0/3.1/3.2 OpenCL 1.1/1.2/2.0 Vulkan 1.1/1.2, High performance 2D image acceleration |
|
NPU | Triple-core NPU, 6 TOPS Performance Support int4/int8/int16/FP16/BF16/TF32 acceleration Enable various AI applications |
|
VPU | Video Decoding: 8K@60fps: H.265/VP9/AVS2 8K@30fps: H.264 AVC/MVC 4K@60fps: AV1 1080P@60fps: MPEG-2/-1/VC-1/VP8 Video Encoding: 8K@30fps: H.265/H.264 |
|
DDR | LPDDR4X 8GB (option: 4/16/32GB) 2133MHz, 64-bit |
|
Storage | eMMC 64GB (Option:128GB/256GB/512GB) MicroSD (TF) Card Slot |
|
USB | 1*Type-C (Full funtion:USB3.1-OTG,DP ALT,PD) 2*USB 3.0 Host 2*USB 2.0 Host |
|
Video Output | HDMI2.1(Maximum resolution 8K@60fps) Type-C DP1.4(maximum resolution 8K@30fps) Mipi-DSI 4-Lane(maximum resolution 2560*1600@60fps) |
|
Video Iutput | 2 * MIPI-CSI 4Lane |
|
Wireless | WiFi 6 (IEEE802.11 a/b/g/n/ac/ax up to 600.4Mbps) BT5.4 2.4Ghz and 5Ghz band channels, 2T2R |
|
Ethernet | 1000Mbps RJ45 |
|
Audio | 3.5mm headphone jack with stereo audio output and mic input On board mic input |
|
Expansion Port | 26Pin header including Power output , I/O,power on/off key,Debugging I/O Pin can be program to UART, PWM, I2C, SPI, CAN, GPIO etc |
|
Button | Recovery key Reset key |
|
LED | Red/Green LEDs |
|
Power Supply | Type-C PD 12V/2A Support QC2.0/PD3.1/BC1.2 and The third party charging protocols |
|
Supported OS | Linux 5.10 (option:Linux6.10) Android12, Debian11, Ubuntu22.04 |
|
Dimension | 56mm(L) x 85mm(W) |
|
Weight | 300Grams |
