Linux ARM Mini PC

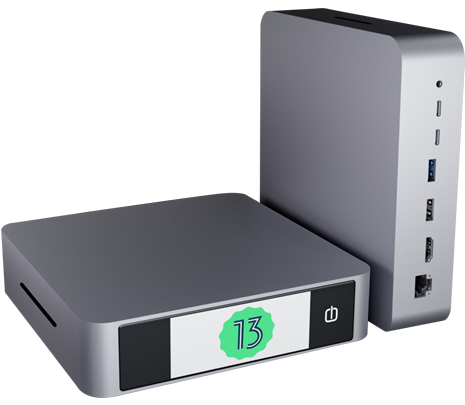

Rockchip RK3588 ARM Mini PC with 6 Tops NPU & 8K Display

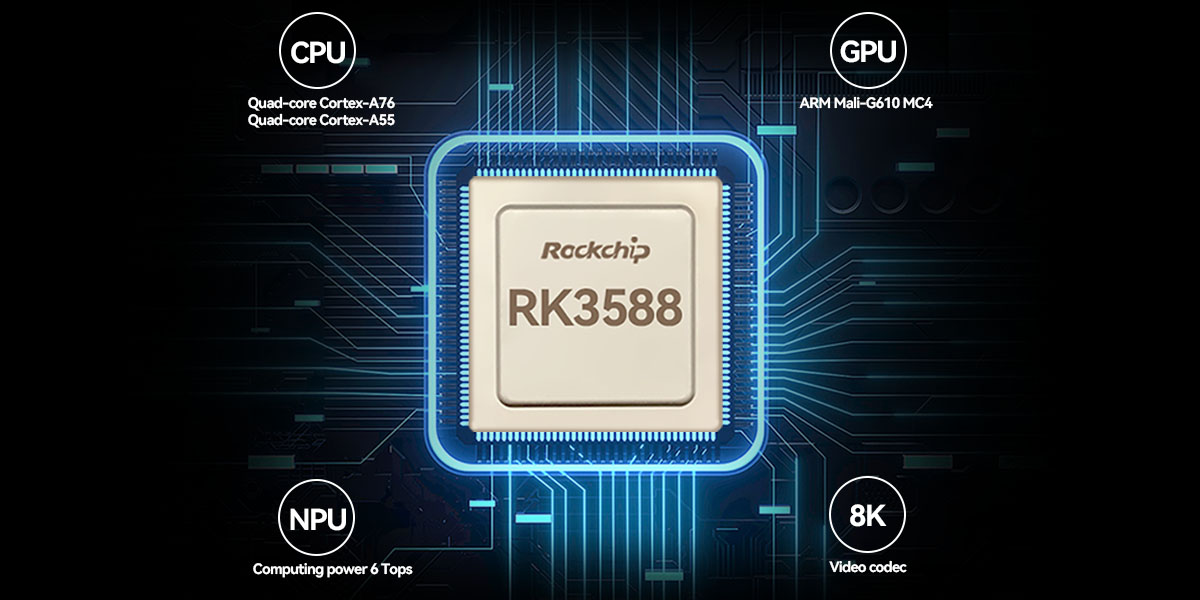

High Performance AIoT Processor RK3588
The RK3588 Mini PC is powered by Rockchip's new-gen flagship AIoT SoC with 8nm lithography process. The RK3588 chipset features a CPU with a big.LITTLE architecture. It includes four high-performance Cortex-A76 cores and four power-efficient Cortex-A55 cores, offering a balance of performance and power efficiency.
Powerful GPU Performance
The RK3588 integrates ARM Mali-G610 MC4 quad-core GPU（max freq 1GHz）. It is capable of handling 3D gaming, multimedia editing, and other graphics-intensive applications.
Super AI Computing Power NPU
Equipped with powerful NPU delivering 6 TOPS(Tera Operations Per Second) of AI computing power. The NPU enhances the chipset's ability to perform AI-related tasks such as image recognition and natural language processing.
8K Decoding & Encoding
The RK3588 SoC is capable of supporting display resolutions up to 8K (7680×4320 pixels), providing extremely high-definition video output. It also includes features such as HDR (High Dynamic Range) support for enhanced video quality. Decoding: x1 8K@60fps / x32 1080P@60fps channels (H.265/VP9) Encoding: x1 8K@30fps / x16 1080P@30fps channels (H.265/H.264)

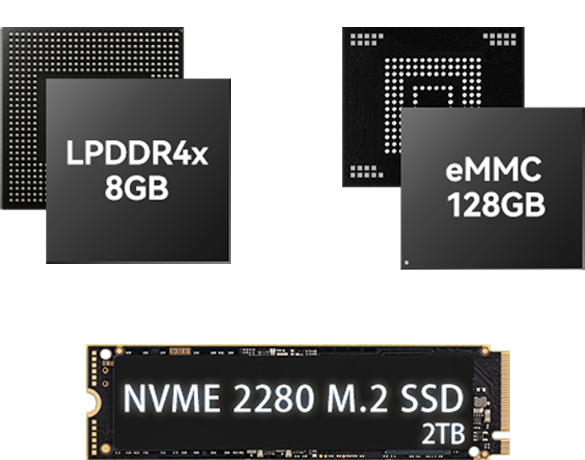

Large Memory Capacity
The M1 ARM Mini PC supports up to 32GB of RAM and 512GB of eMMC, one M.2 PCIe3.0 NVMe SSD can be expanded at the same time. It can fulfill the huge RAM and large storage capacity needs of different applications.

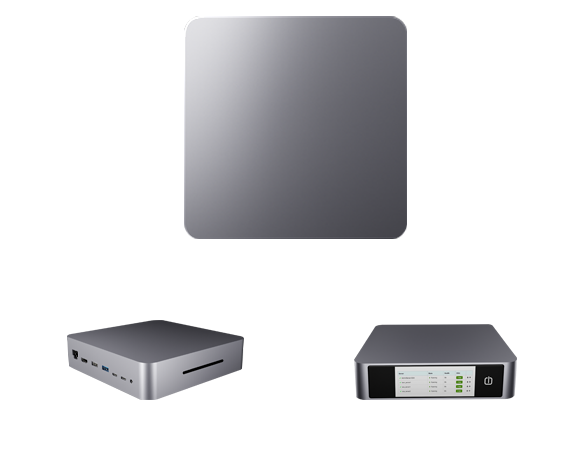

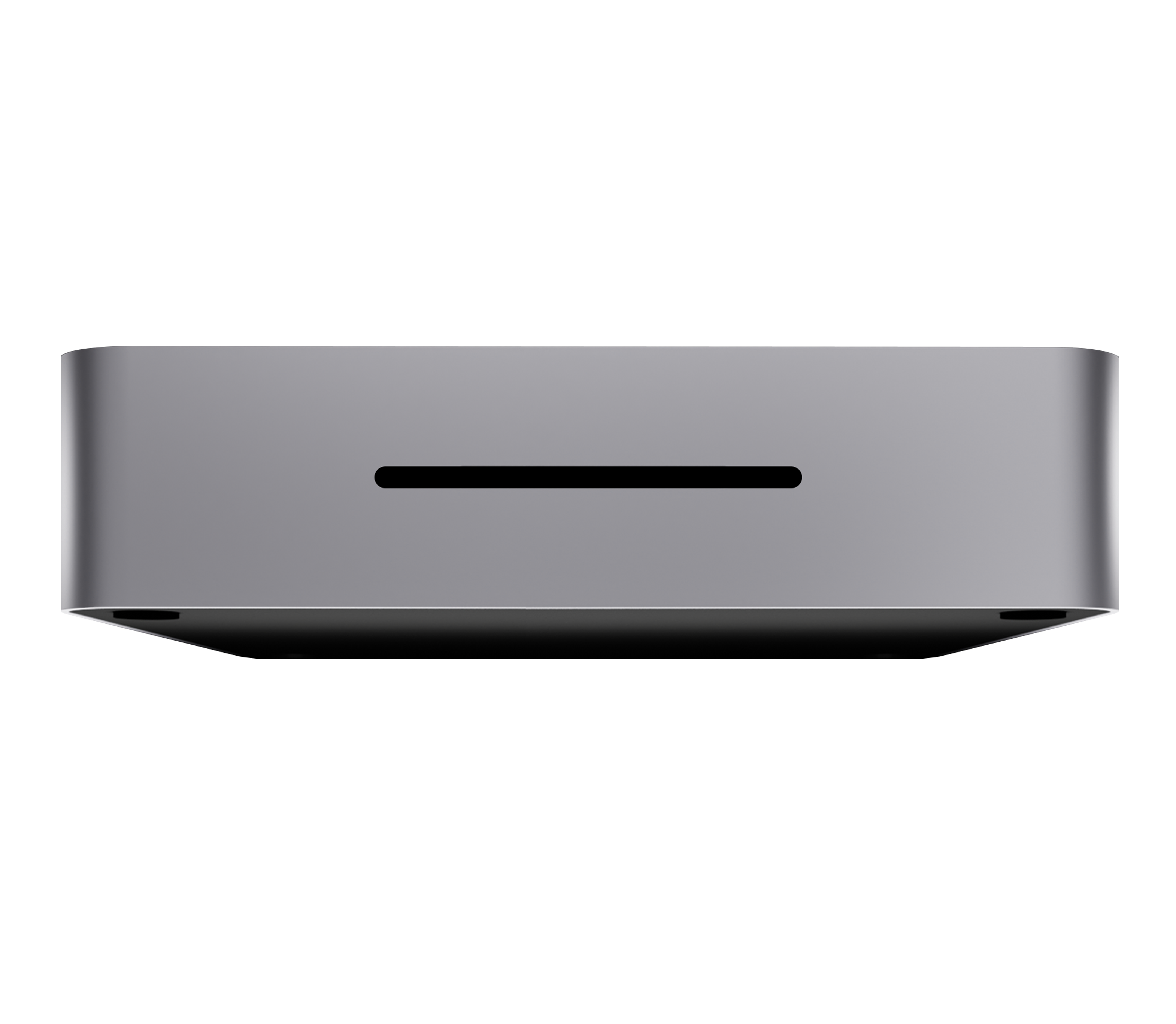

Integrated Aluminum Alloy CNC
The CNC machining and anodizing processes create a sleek and uniform finish on the aluminum chassis, giving the embedded computer a premium look and feel. Aluminum has good thermal conductivity, helping to dissipate heat which can improve performance and prolong the lifespan of the device.

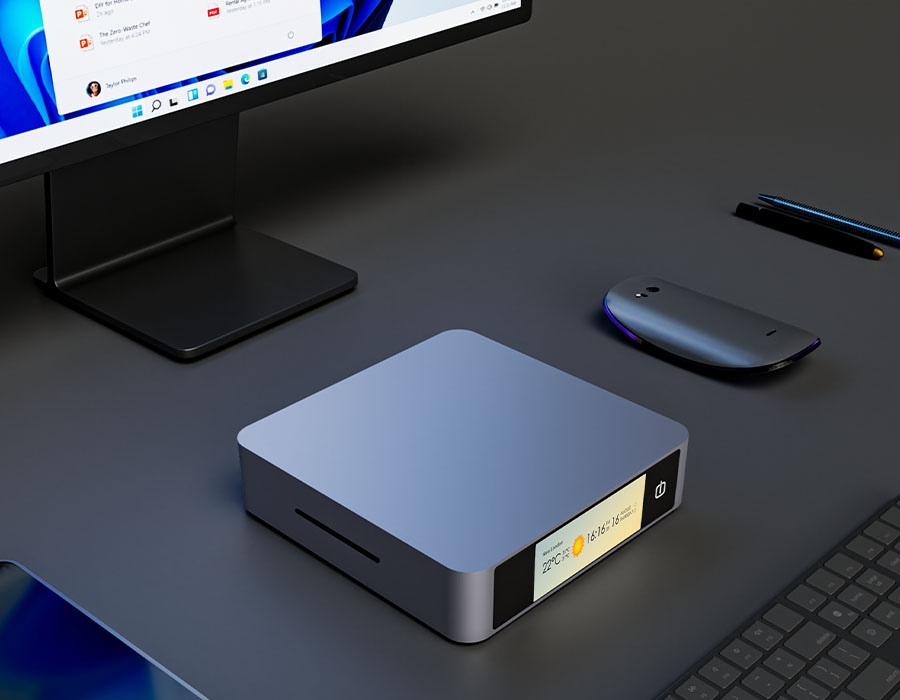

Compact Size but Powerful Performance
Designed to be easily portable and can be placed on a desk or mounted behind a monitor, with a dimension of 160x160x38mm and weight of 1.81pounds, offering excellent computing power for multitasking and productivity applications.

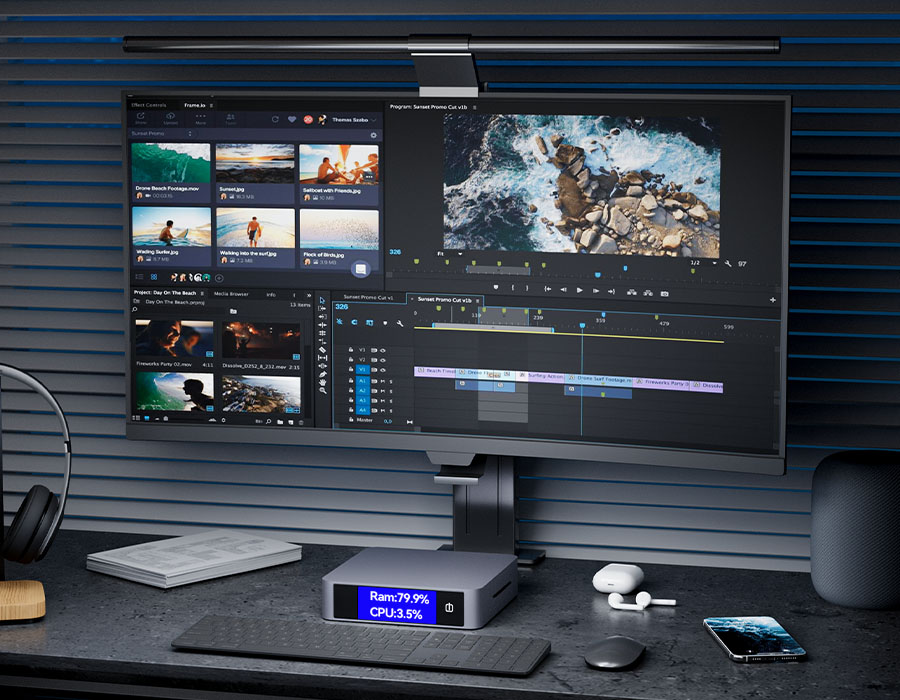

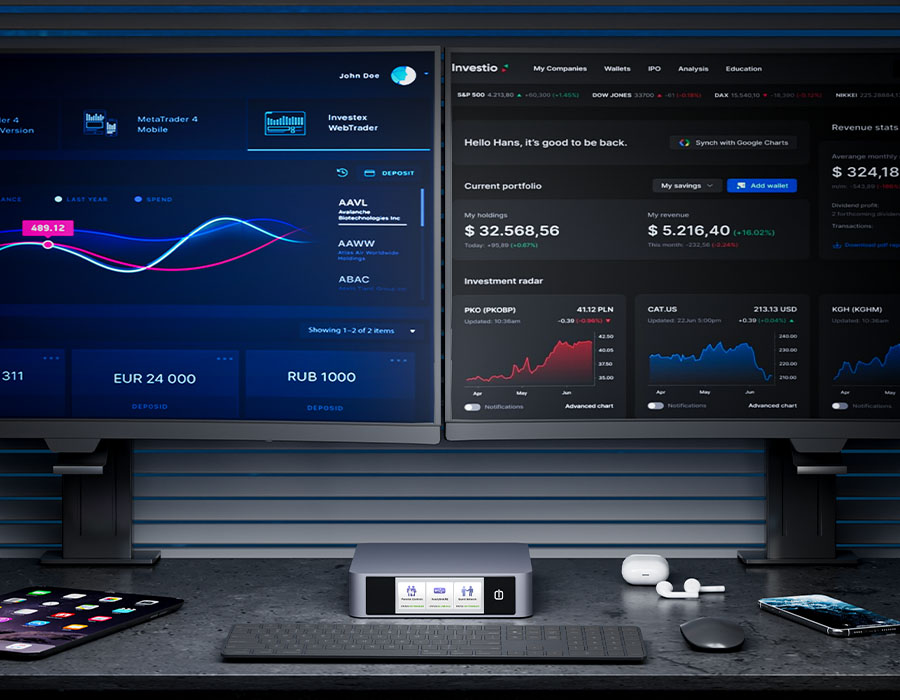

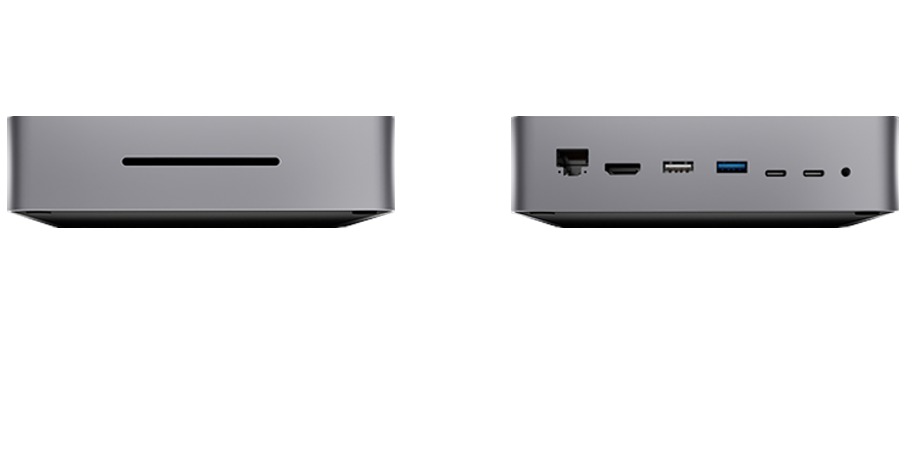

Dual Display Interface
Supports a range of display interfaces, including HD-MI 2.1 and DisplayPort 1.4, enabling it to connect to a variety of display devices such as monitors, TVs, and projectors.

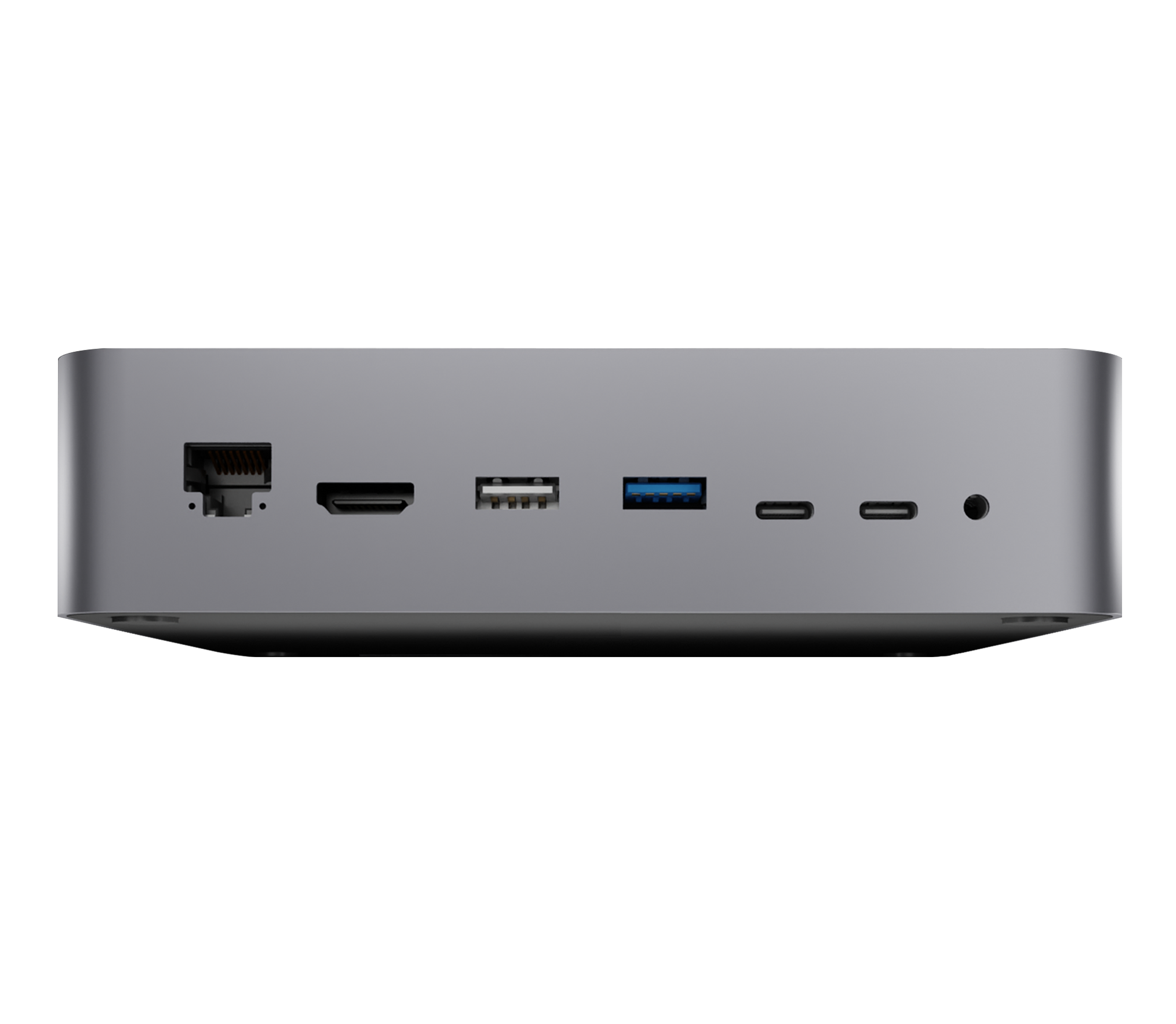

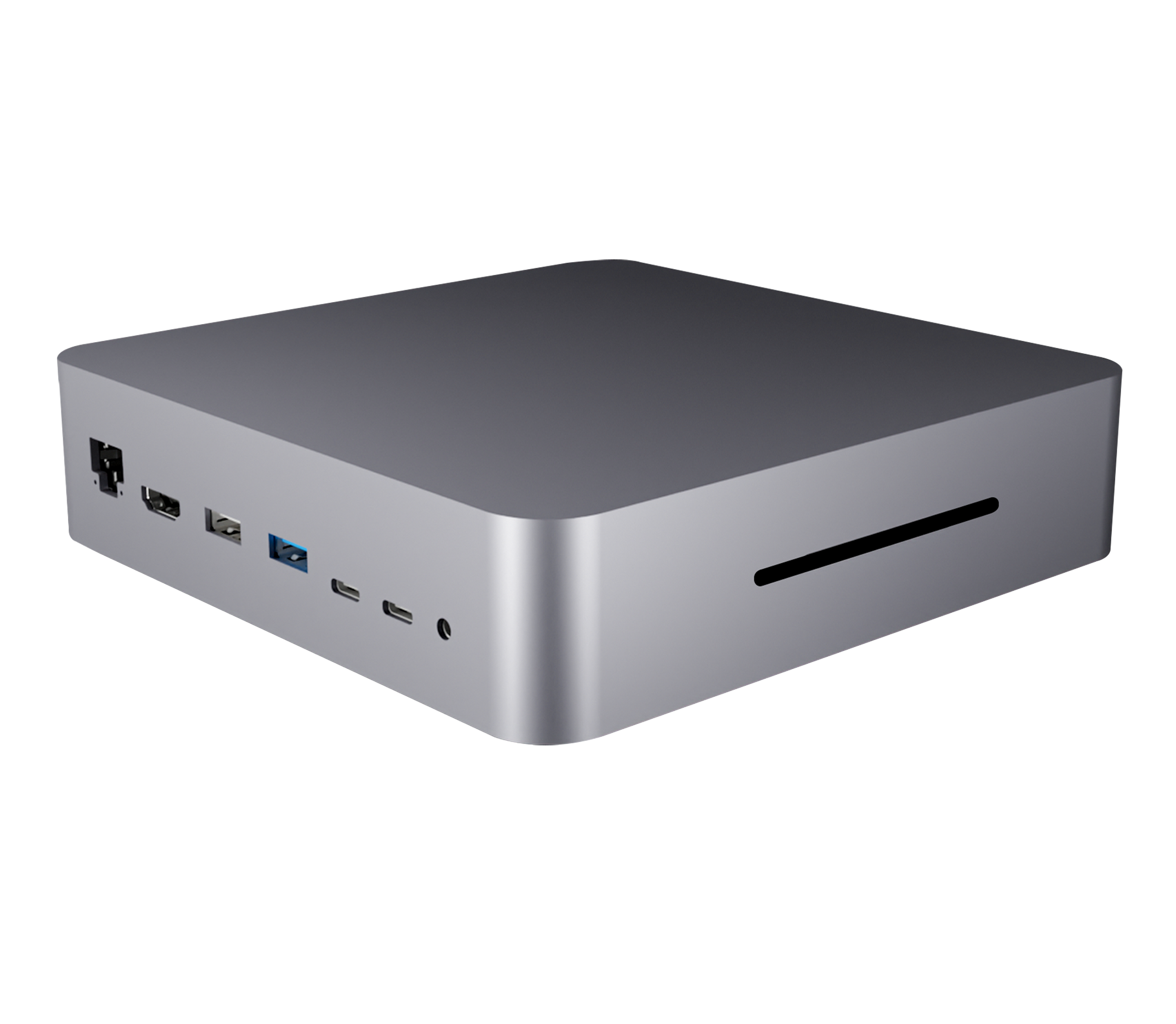

Strong and Versatile Connection
The RK3588 chipset offers a range of connectivity options, including USB, USB-C, PCIe, HD-MI, and Ethernet, allowing for easy integration into various devices. It also supports wireless connectivity standards such as Wi-Fi and Bluetooth.
Extensive Technical Assistance
Develop your projects more quickly by utilizing extensive technical data sheet, such as SDK development tools, technical documentation, source code, API interfaces, and baseboard reference design. This feature makes it simple to build custom solutions for efficient secondary development.
Multiple OS Compatibility
The M1 Mini Box PC supports various operating systems: including Android 12.0/13.0, Ubuntu 18.04 (Desktop and Server), Debian11, Buildroot, RTLinux kernel, and more.
Broad Applications
The M1 Mini PC Box is a powerful device that can be used for a variety of applications, such as Medical Image Analysis, Manufacturing Optimization, Data Center Acceleration, Smart Large Screen, Education, VR/AR, Industrial Control, Home Automation, Intelligent Retail, and AI machine learning, Digital Signage, etc.
-

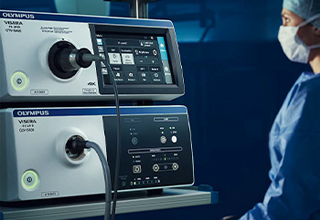

Medical lmage Analysis
-
Manufacturing Optimization
-
Data Center Acceleration
-

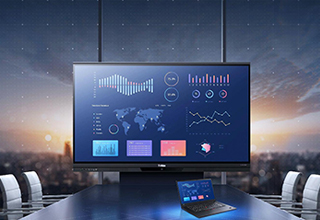

Smart Large Screen
Basic parameters
| System | SOC | Rockchip RK3588 |
| CPU | Eight-core 64-bit CPU (4 x Cortex-A76 + 4 x Cortex-A55), main frequency 2.4GHz |
|
| GPU | Quad-core Mali-G610 |
|
| NPU | NPU has 6 TOPs computing power, Support INT4/INT8/INT16 mixed operation, Support framework switching of TensorFlow / MXNet / PyTorch / Caffe |
|
| VPU | Video decoding: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding: 8K@30fps encoding, support H.265/H.264 Can achieve up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding |
|
| Memory | 8GB 64bit LPDDR4x (expandable to 32GB) |
|
| Storage | 128GB eMMC(expandable to 256GB), expansion 1x PCle 3.0 NVME SSD |
|

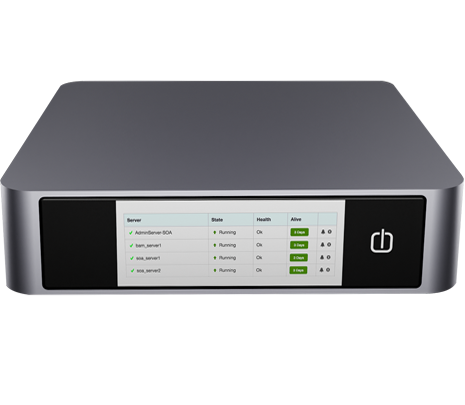

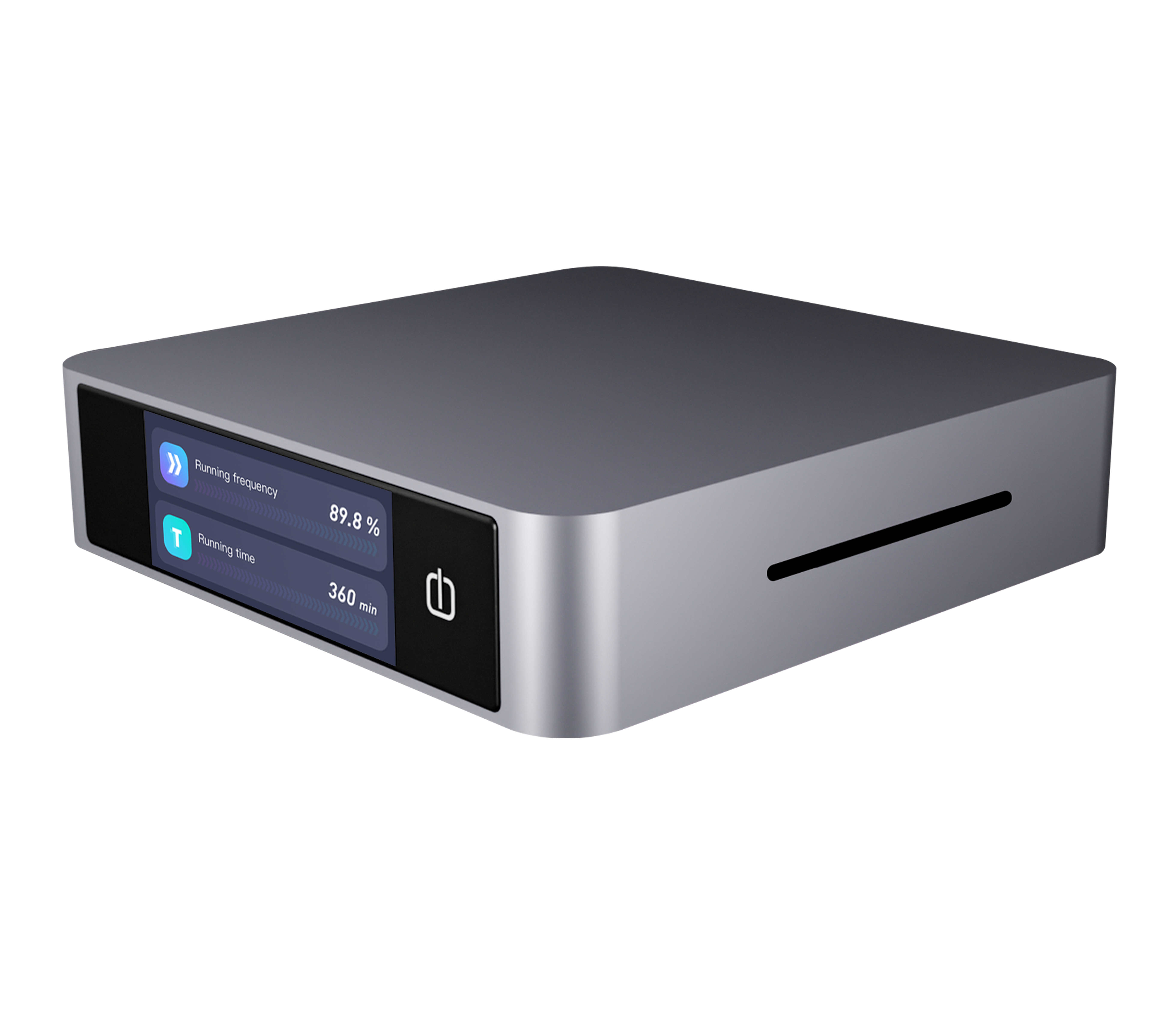

| Display | 3.16 inch IPS LCD, 820 x 120 resolution, user-defined content for information display |
|
| Power Key | Devices power ON/OFF with red/green LED indicator |
|
| I/O Interface | Ethernet | Gigabit Ethernet(1000Mbps/RJ45) |
| HD-MI | HD-MI2.1 8K@60Hz, support ARC |
|
| USB-C for Data | USB3.0 OTG data transfer; DisplayPort ALT mode; Power Delivery; Dual-role power |
|
| USB-C for Power | Devices power supply, support PD/QC, DC-12V default |
|
| USB-A USB3.0 | USB3.0 HOST |
|
| USB-A USB2.0 | USB2.0 HOST |
|
| 3.5mm Audio Jack | Support stereo audio output and MIC input |
|
| Function | RTC | Real time clock |
| Wi-Fi(Option) | IEEE802.11 a/b/g/n/ac 2.4/5GHz Dual-Band 1x1 Wi-Fi |
|
| BT(Option) | Bluetooth V5.0 + EDR with BLE |
|
| Speaker(Option) | 4Ω/2W Left/Right Speaker |
|
| IMU(Option) | 3-axis accelerometer and 3-axis gyroscope |
|
| Operating System | Android | Android 12(Default) Android 11/13/14(Option) |
| Linux | Ubuntu22.04 / Debian11 / Buildroot |
|
| Domestic OS | UOS / KylinOS / HarmonyOS |
|
| Power Supply | USB-C | USB-C Adapter,default 12V/1.67A(20W) |
| Power Consumption | Typical | 2.16W (12V/180mA) |
| Maximum | 14.4W (12V/1200mA) |
|
| Standby | 0.06W (12V/5mA) |
|
| Mechanical | Dimensions | 6.30”x 6.30”x 1.50” (160 x 160 x 38mm) |
| Weight | 1.81lb (820g) |
|
| Construction | Chassis Material | Aluminum Alloy Integrated Profile |
| Color | Dark grey default, silver, black or white etc. |
|
| Mounting | Desktop stand or monitor rear hanging |
|
| Ambient | Operating Temperature | 32°F ~ 140°F (0℃～60℃） |
| Storage Temperature | -4°F ~ 158°F (-20℃～70℃) |
|
| Operating Humidity | 10%～90% (Non condensation) |
