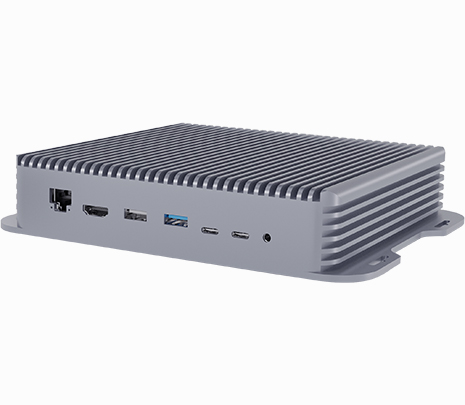

Industrial Mini PC
Fanless industrial embedded computer Rockchip chip RK3588
Industrial grade configuration
Fanless design, robust aluminum alloy construction, and an operating temperature range of -40°F to 185°F ensure dependable operation in challenging conditions.
Octa-core AIoT flagship chip RK3588
Based on Rockchip's 8nm process flagship chip RK3588 (quad-core Cortex-A76 + quad-core Cortex-A55), main frequency up to 2.4GHz Equipped with Android 12 or Linux operating system, supports TF/USB/SATA3.0 storage expansion.
High AI Computing Power NPU
The industrial computer has a 6Tops computing power NPU processor, a three-core architecture, supports int4/int8/int16/FP16/BF16/TF32 mixed computing, supports a variety of AI development tools and interfaces, and meets a variety of edge computing application scenarios.
8K Decoding & Encoding
The RK3588 SoC is capable of supporting display resolutions up to 8K (7680×4320 pixels), providing extremely high-definition video output. It also includes features such as HDR (High Dynamic Range) support for enhanced video quality. Decoding: x1 8K@60fps / x32 1080P@60fps channels (H.265/VP9) Encoding: x1 8K@30fps / x16 1080P@30fps channels (H.265/H.264)
2GB large RAM, large-capacity storage expansion
Supports up to 32GB of RAM and 512GB of eMMC, one M.2 PCIe3.0 NVMe SSD can be expanded at the same time. It can fulfill the huge RAM and large storage capacity needs of different applications.

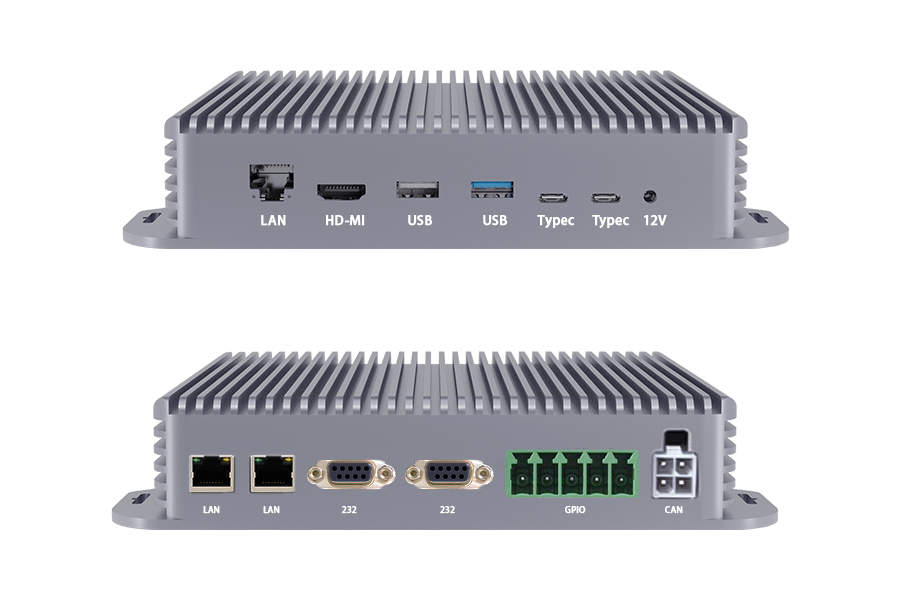

Strong Expandability with Rich Interfaces

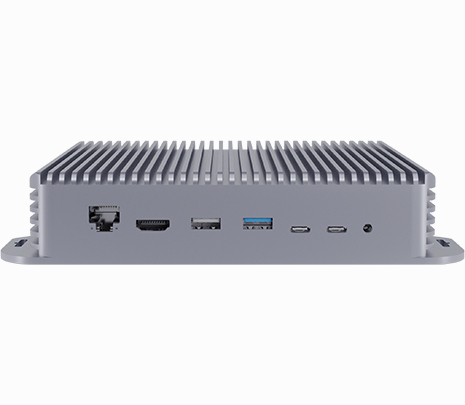

Equipped with mutiple USB interfaces (USB-C (supports USB3.0 OTG), USB-A USB3.0 Host), standard DB9 female RS232 interfaces, and available for RS485, GPIO, and CAN port, which greatly improves the environmental adaptability in industrial scenarios with high interface requirements and one-control-many.

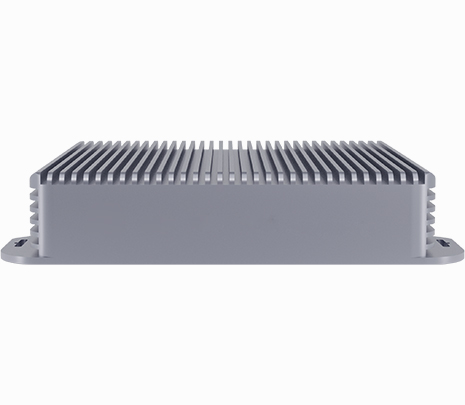

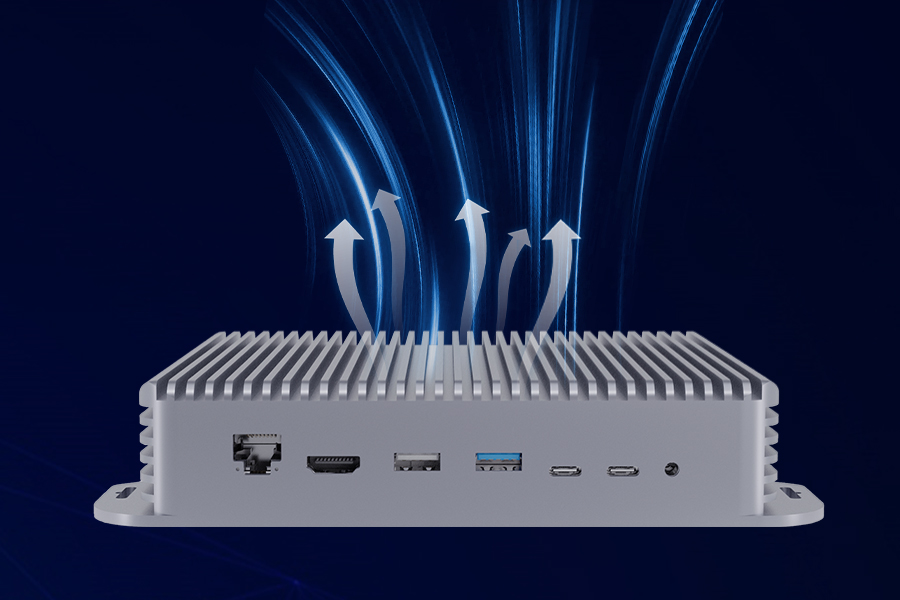

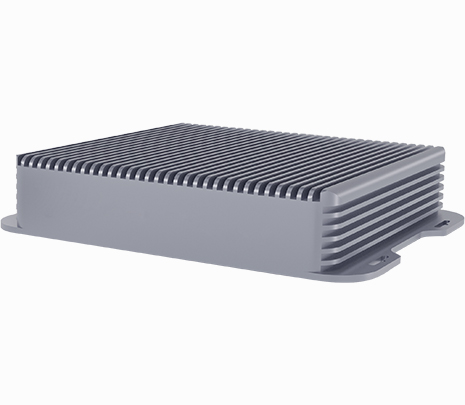

Industrial Texture, Slim and Elegant
The enclosure is oxidized sandblasted matte black, slim and elegant, with a full sense of industrial technology. Adopting fanless design, the aluminum profile shell with strong thermal conductivity is preferred, which can better conduct internal heat and protect internal components under noiseless conditions. The shell is durable and not easy to deform, has better corrosion resistance, has less restrictions on the use environment.
Networking Communication
Wired network: support 10/100/1000M adaptive Ethernet Wireless network: built-in Wi-Fi 6, Bluetooth 5.0 Mobile network: support PCI-E interface 4G/5G Internet access.
Software Configuration
System services: support SSH, telnetd, nfs, tftp, etc. Development components: Media processing: GPU, VPU (video encoding and decoding, image zooming, etc.) Intelligent analysis processing: NPU (support INT4, INT8, INT16 integer/FP16 floating point calculation) AI development: support classification, detection, tracking, recognition, segmentation and other algorithms.
Multiple OS Compatibility
The industrial Mini Box PC supports various operating systems: including Android 12.0/13.0, Ubuntu 18.04 (Desktop and Server), Debian11, Buildroot, RTLinux kernel, and more.
Broad Applications
The rugged industrial Mini PC Box is a powerful device that are mainly for data collection in the energy field such as electricity, photovoltaics, water services, and intelligent factories.
-

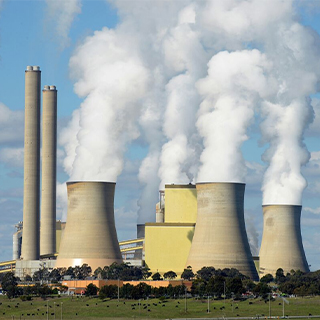

Power Stations
-

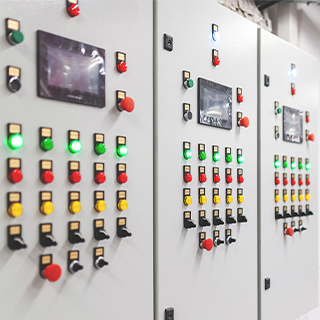

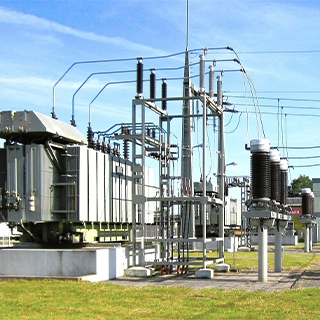

Substations
-
Distribution Stations
-

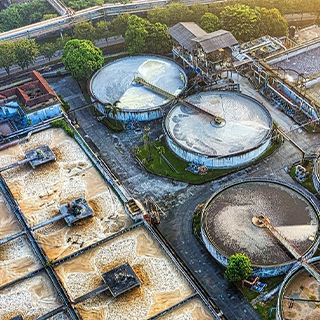

Sewage Treatment
Basic parameters
| System | SOC | RockChip RK3588S |
| CPU | Eight-core 64-bit CPU (4 x Cortex-A76 + 4 x Cortex-A55), main frequency 2.4GHz |
|
| GPU | Quad-core Mali-G610 |
|
| NPU | NPU has 6 TOPs computing power, Support INT4/INT8/INT16 mixed operation, Support framework switching of TensorFlow / MXNet / PyTorch / Caffe |
|
| VPU | Video decoding: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding: 8K@30fps encoding, support H.265/H.264 Can achieve up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding |
|
| Memory | 8GB 64bit LPDDR4x (expandable to 32GB) |
|
| Storage | 128GB eMMC(expandable to 256GB),expansion 1x PCle 3.0 NVME SSD |
|
| Power Key | Devices power ON/OFF with red/green LED indicator |
|
| I/O Interface | Ethernet | Gigabit Ethernet(1000Mbps/RJ45) |
| HD-MI | HD-MI2.1 8K@60Hz, support ARC |
|
| USB-C for Data | USB3.0 OTG data transfer; DisplayPort ALT mode; Power Delivery; Dual-role power |
|
| USB-C for Power | Devices power supply, support PD/QC, DC-12V default |
|
| USB-A USB3.0 | USB3.0 HOST |
|
| USB-A USB2.0 | USB2.0 HOST |
|
| Peripheral Interface | RS232, RS485, CAN, GPIO |
|
| 3.5mm Audio Jack | Support stereo audio output and MIC input |
|
| Funtion | RTC | Real time clock |
| Wi-Fi(Option) | IEEE802.11 a/b/g/n/ac 2.4/5GHz Dual-Band 1x1 Wi-Fi |
|
| Mobile Network(Option) | Support PCI-E interface 4G/5G |
|
| BT(Option) | Bluetooth V5.0 + EDR with BLE |
|
| Speaker(Option) | 4Ω/2W Left/Right Speaker |
|
| IMU(Option) | 3-axis accelerometer and 3-axis gyroscope |
|
| Operating System | Android | Android 12(Default) Android 11/13/14(Option) |
| Linux | Ubuntu22.04 / Debian11 / Buildroot |
|
| Domestic OS | UOS / KylinOS / HarmonyOS |
|
| Power Supply | USB-C | USB-C Adapter,default 12V/1.67A(20W) |
| Power Consumption | Typical | 2.16W (12V/180mA) |
| Maximum | 14.4W (12V/1200mA) |
|
| Standby | 0.06W (12V/5mA) |
|
| Mechanical | Dimensions | 7.80”x 6.30”x 1.50” (198 x 160 x 38mm) |
| Weight | 2.25lb (1020g) |
|
| Construction | Chassis Material | Aluminum Alloy Integrated Profile |
| Color | Dark grey default, silver, black or white etc. |
|
| Mounting | Screw fix on both sides |
|
| Ambient | Operating Temperature | -40°F ~ 185°F (-40℃～85℃） |
| Storage Temperature | -40°F ~ 185°F (-40℃～85℃） |
|
| Operating Humidity | 10%～90% (Non condensation) |
|
| Storage Humidity | 10%～95% (Non condensation) |
