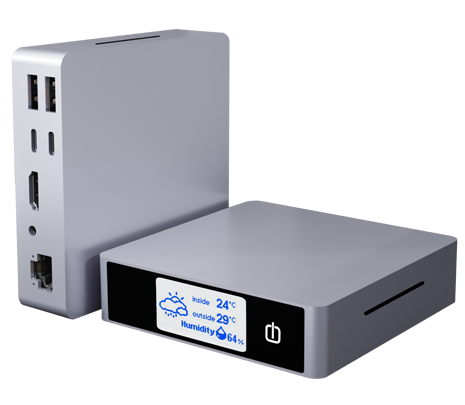

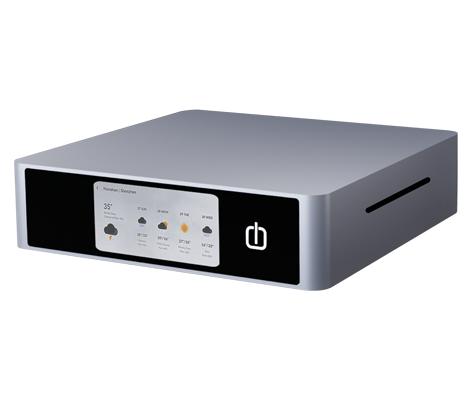

Android Mini PC AI Box
Rockchip RK3588S Android ARM Mini PC AI box with 6 Tops NPU & 8K Display
High Performance AIoT Processor RK3588S
The RK3588 Mini PC is powered by Rockchip's new-gen flagship AIoT SoC with 8nm lithography process. The RK3588S chipset features a CPU with a big.LITTLE architecture. It includes four high-performance Cortex-A76 cores and four power-efficient Cortex-A55 cores, offering a balance of performance and power efficiency.

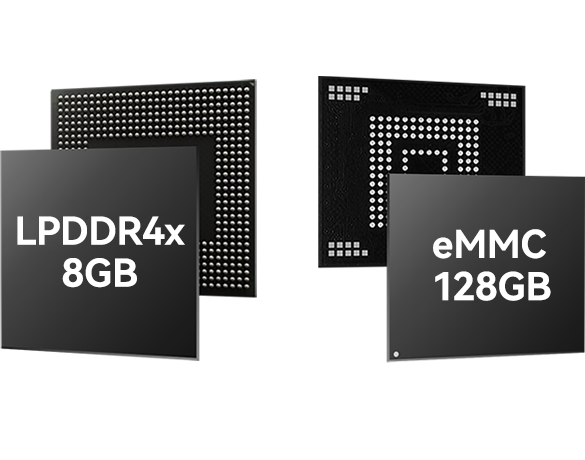

Large Memory Capacity
Supports up to 32GB of RAM LPDDR4 and 512GB of eMMC, offering high-speed memory access for improved performance.
Powerful Computing Power NPU
Equipped with powerful NPU delivering 6 TOPS(Tera Operations Per Second) of AI computing power. The NPU enhances the chipset's ability to perform AI-related tasks such as image recognition and natural language processing.
8K Decoding & Encoding
The RK3588S SoC is capable of supporting display resolutions up to 8K (7680×4320 pixels), providing extremely high-definition video output. It also includes features such as HDR (High Dynamic Range) support for enhanced video quality. Decoding: x1 8K@60fps / x32 1080P@60fps channels (H.265/VP9) Encoding: x1 8K@30fps / x16 1080P@30fps channels (H.265/H.264)

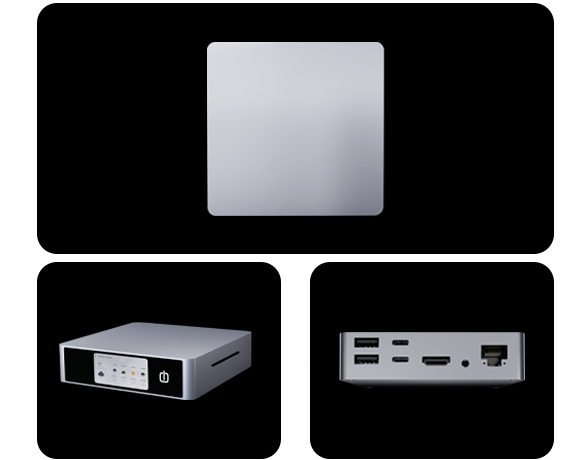

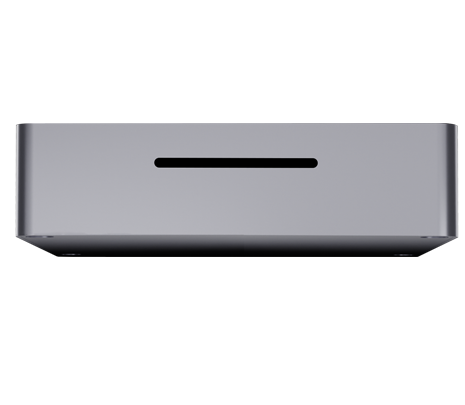

Integrated Aluminum Alloy CNC
The CNC machining and anodizing processes create a sleek and uniform finish on the aluminum body, giving the mini PC a premium look and feel. Aluminum has good thermal conductivity, helping to dissipate heat which can improve performance and prolong the lifespan of the device.

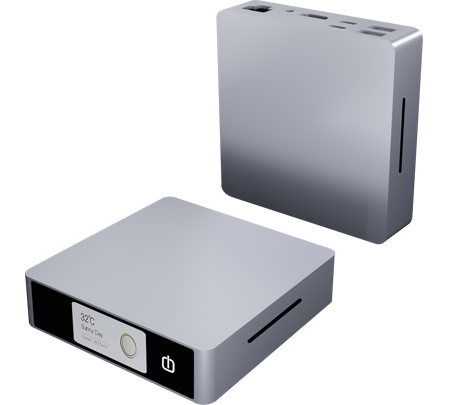

M2 RK3588S Linux ARM processor Mini PC with 8K display

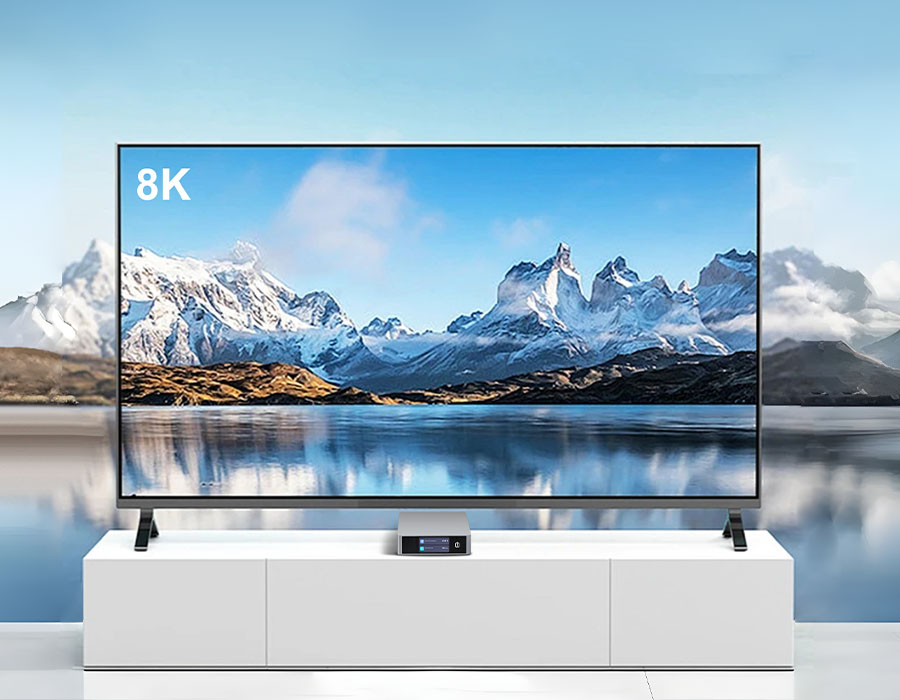

8K Resolution: The ability to display content in ultra-high-definition 8K resolution (7680×4320 pixels), providing incredibly detailed and crisp visuals.

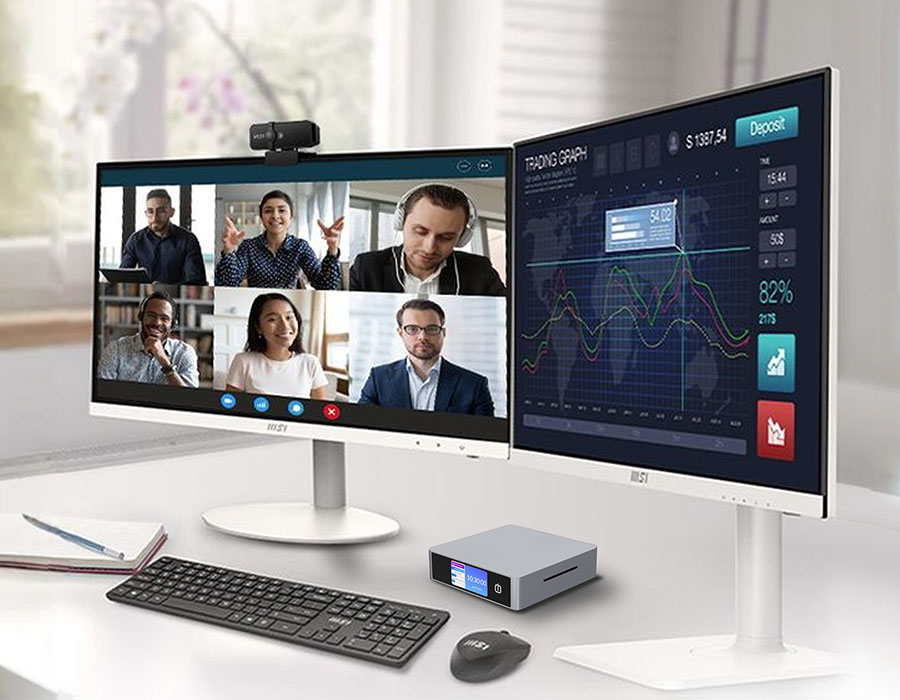

Dual Display Interface
Supports a range of display interfaces, including HD-MI 2.1 and DisplayPort 1.4, enabling it to connect to a variety of display devices such as monitors, TVs, and projectors.

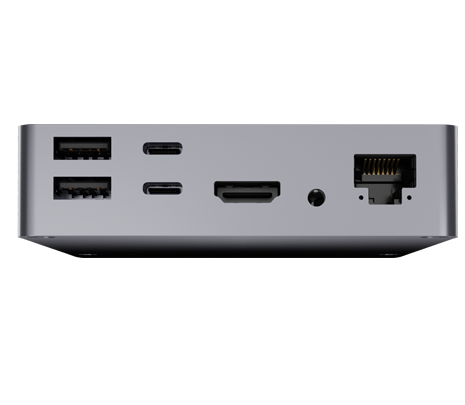

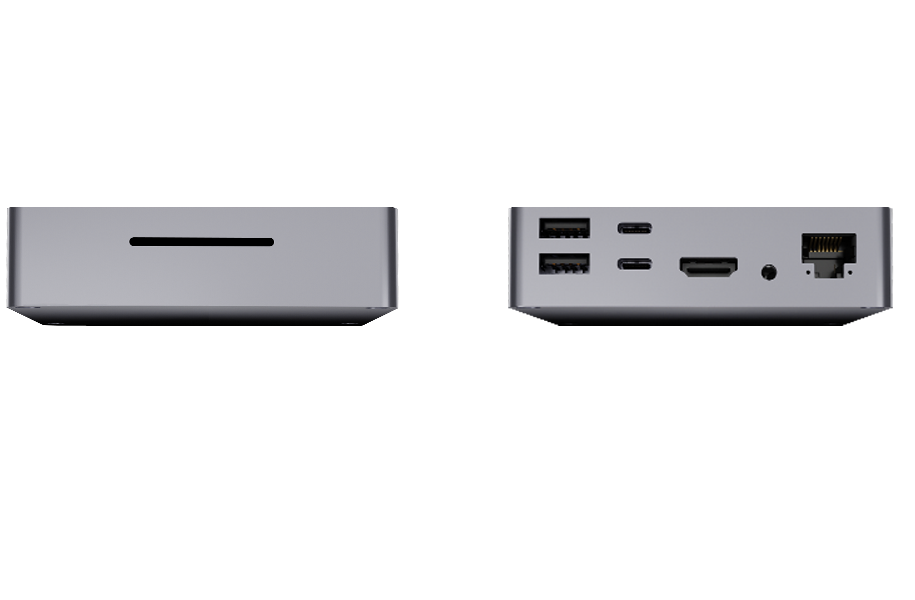

Strong and Versatile Connection
The RK3588S chipset offers a range of connectivity options, including USB, USB-C, PCIe, HD-MI, and Ethernet, allowing for easy integration into various devices. It also supports wireless connectivity standards such as Wi-Fi and Bluetooth.
Extensive Technical Assistance
Develop your projects more quickly by utilizing extensive technical data sheet, such as SDK development tools, technical documentation, source code, API interfaces, and baseboard reference design. This feature makes it simple to build custom solutions for efficient secondary development.
Multiple OS Compatibility
The Android Mini PC AI Box supports various operating systems: including Android 12.0/13.0, Ubuntu 18.04 (Desktop and Server), Debian11, Buildroot, RTLinux kernel, and more.
Versatile Applications
The Android RK3588 Mini PC AI Box is a powerful device that can be used for a variety of applications, such as Medical Image Analysis, Manufacturing Optimization, Data Center Acceleration, Smart Large Screen, Education, VR/AR, Industrial Control, Home Automation, Intelligent Retail, and AI machine learning, Digital Signage, etc.
-
AR/VR
-
Smart Education
-
AI and Machine Learning
-
Industrial Control
Basic parameters
| System | SOC | Rockchip RK3588S |
| Process | 8nm |
|
| CPU | Eight-core 64-bit CPU Quad-core Cortex-A76 + Quad-core Cortex-A55, main frequency 2.4GHz |
|
| GPU | ARM Mali-G610 MC4（Max frequency 1GHz） Support OpenCL 3.0; OpenGLES 1.1/2.0/3.2; Vulkan 1.1; Embedded high performance 2D image acceleration module |
|
| NPU | 6TOPS NPU, triple core, support int4/int8/int16/FP16/BF16/TF32 acceleration Support framework switching of TensorFlow / MXNet / PyTorch / Caffe |
|
| VPU | Video decoding: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding: 8K@30fps encoding, support H.265/H.264 Can achieve up to 32 channels of 1080P@30fps decoding and 16 channels of 1080P@30fps encoding |
|
| Memory | 8GB LPDDR4x ( expandable to 32GB ) |
|
| Storage | 128GB eMMC ( expandable to 256GB ) |
|
| ISP | VICAP input: RX raw8/raw10/raw12 Maximum input： 48M：8064x6048@15fps dual ISP; 32M：6528x4898@30fps dual ISP; 16M：4672x3504@30fps single ISP |
|
| Display | 1.47 inch IPS LCD, 320 x 172 resolution, user-defined content for information display |
|
| Power Key | Devices power ON/OFF with red/green LED indicator |
|
| I/O Interface | USB interface | 2x Type-C 1x USB3.0 1x USB2.0 |
| HD-MI | HD-MI2.1 8K@60Hz, support ARC |
|
| USB-C for Data | USB3.0 OTG data transfer DisplayPort ALT mode Power Delivery Dual-role power |
|
| USB-C for Power | Devices power supply, support PD/QC, DC-12V default |
|
| USB-A USB3.0 | USB3.0 HOST |
|
| USB-A USB2.0 | USB2.0 HOST |
|
| RJ45 | 10/100/1000M Ethernet |
|
| Function | RTC | Real time clock |
| Wi-Fi(Option) | IEEE802.11 a/b/g/n/ac 2.4/5GHz Dual-Band 1x1 Wi-Fi |
|
| BT(Option) | Bluetooth V5.0 + EDR with BLE |
|
| Speaker(Option) | 4Ω/2W Left/Right Speaker |
|
| IMU(Option) | 3-axis accelerometer and 3-axis gyroscope |
|
| Operating System | Android | Android 12(Default) Android 11/13/14(Option) |
| Linux | Ubuntu22.04 / Debian11 / Buildroot |
|
| Domestic OS | UOS / KylinOS / HarmonyOS |
|
| Power Supply | USB-C | USB-C Adapter,default 12V/1.67A(20W) |
| Power Consumption | Typical | 2.16W (12V/180mA) |
| Maximum | 14.4W (12V/1200mA) |
|
| Standby | 0.06W (12V/5mA) |
|
| Mechanical | Dimensions | 3.74" x 3.74" x 1.02" (95 x 95 x 26mm) |
| Weight | 0.66lb (300g) |
|
| Construction | Chassis Material | Aluminum Alloy Integrated Profile |
| Color | Dark gray default, silver, black or white etc. |
|
| Mounting | Desktop stand or monitor rear hanging |
|
| Ambient | Operating Temperature | 32°F ~ 140°F (0℃～60℃） |
| Storage Temperature | -4°F ~ 158°F (-20℃～70℃) |
|
| Operating Humidity | 10%～90% (Non condensation) |
